Flex Configurator Tool from Magic Motor Sport
Flex Configurator Tool
FLEX is an innovative tool for mechatronic workshops that fully supports the latest developments in the automotive tuning and repair market. Increase your productivity and bring your business up to the next level by adding this new customizable technology to your workplace.

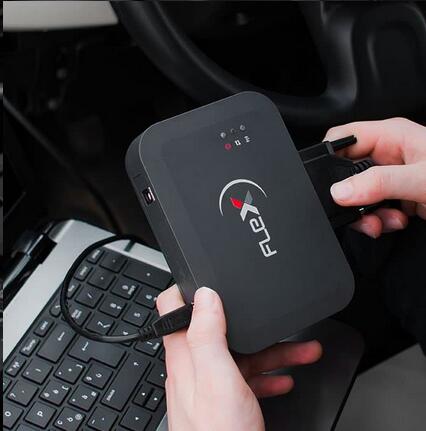

Use your FLEX to easily tune, reprogram, upgrade or modify the software of most control units directly through the OBD socket of the vehicle.

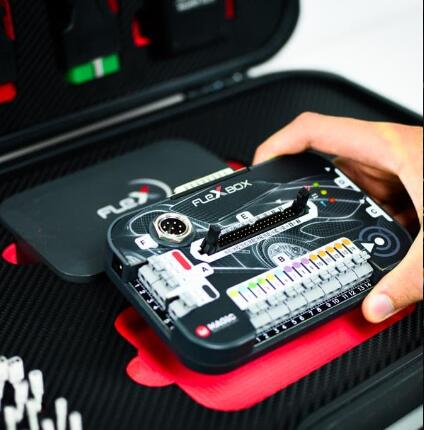

For advanced and repairing jobs, use the Flexbox module to program your control unit in BDM, Bootloader, JTAG and AUD modes.
The device detects eventual connection or communication errors thanks to the concept of its state-of-the -art design.

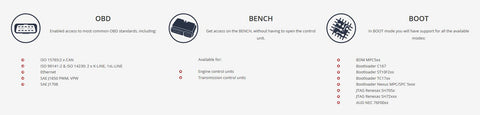

Connect your vehicle to our most advanced technology through the variety of modes offered to you. With Flex you can manage engines, transmissions, safety features and infotainment units present in your vehicle in the most efficient way possible.
Flex is the solution to all your needs as it adapts to every situation thanks to the accessories contained in the kit that allow effortless connections. Start working with a professional tool that will bring you to the highest level of technology on the market.
Flex Tool Parameter:
| Led | PC Port |
|---|---|
| Power Data Error |
USB 2.0 |
| Power | Communication Port |
| 12V 5A/24V 2.5A | ISO 15765:2 x CAN ISO 99141-2 & ISO 14230: 2 x K-LINE, 1xL-LINE Ethernet SAE J1850 PWM, VPW SAE J1708 |
| Protections | Universal Port |
| ESD 1kV Over power Over voltage Over temperature Power polarization USB galvanic separation |
Universal 15 In/Out ports Voltage standard: internal 3.3V, internal 5V, external 1.8 - 5.5V JTAG, BDM, AUD, UAR |
Package List:
| # | SKU code | Quantity | Description |
|---|---|---|---|
| 1 | FLK35 | 1 | Cabling kit: FLX3.5 color coded wiring harness |
| 2 | FLK42 | 1 | Adapter kit: 6 pcs set of pin adapters to FLX4.2 |
| 3 | FLX1.1 | 1 | FLEX Base Module |
| 4 | FLX1.9 | 1 | FlexBox Module for FLEX |
| 5 | FLX2.10 | 1 | Connection cable OBD: FLEX to CAN/Kline RED |
| 6 | FLX2.11 | 1 | Connection cable OBD: FLEX to ENet GREEN |
| 7 | FLX3.9 | 1 | Connection cable: USB 2.0 AM-BM BLK 1.8m |
| 8 | FLX4.9 | 1 | Power Supply adapter 110-240V 14V 5A |
| 9 | FLX3.3 | 1 | Connection cable: FlexBox port C to NEC 7F00 XX |
| 10 | FLX3.4 | 1 | Connection cable: FlexBox port D to BDM MPC5xx |
| 11 | FLX4.1 | 1 | FlexBox port E 40 pins adapter for FLX3.5 |
| 12 | FLX9.1 | 1 | Flex & FlexBox diagnostic adapter |
| 13 | FLX8.10 | 1 | FLEX Branded Box |
