Autel MX-Sensor 315MHz Universal Programmable TPMS Sensor

  • $29.99
    Unit price per
Shipping calculated at checkout.

Autel MX-Sensor 315MHz Universal Programmable TPMS Sensor

Autel MX-Sensor Advantage:

1. Covering 98% of all OE sensors on the market
2. 2 sensor types to reduce inventory (two valve types available)
3. Wireless sensor programming with Autel TPMS service tools
4. 100% ID clone-able sensor with no re-learn required
5. Independently tested and certified to meet SAE standards

Autel MX-Sensor Specifications:

Battery Life: ≥5 years
Operating Temperature: -40°C to +125°C
Storage Temperature -40°C to +150°C
Operating Humidity: 90%
Operating Frequency: 315MHz
Pressure Monitoring Range: 100 to 900 kPa
Pressure Reading Accuracy: ±10 kPa
Temperature Reading Range: -40°C to +125°C
Temperature Reading Accuracy: ±5°C
G Sensor Reading Accuracy: ±15%
Transmission Power: 5-8 dBm
Battery:: 3.0 V
Dimensions (W x H x D): 55.1 mm x 29.4 mm x 21.8 mm (Clamp-in Sensor)
Weight (Without Valve):18.5 g (Clamp-in Sensor)

Autel MX-Sensor Installation Process

1. Loose the tire: Remove the valve cap and core and deflate the tire.
2. Dismount the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.
3. Dismount the sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.
4. Mount sensor and valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.
5. Mount the tire: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.

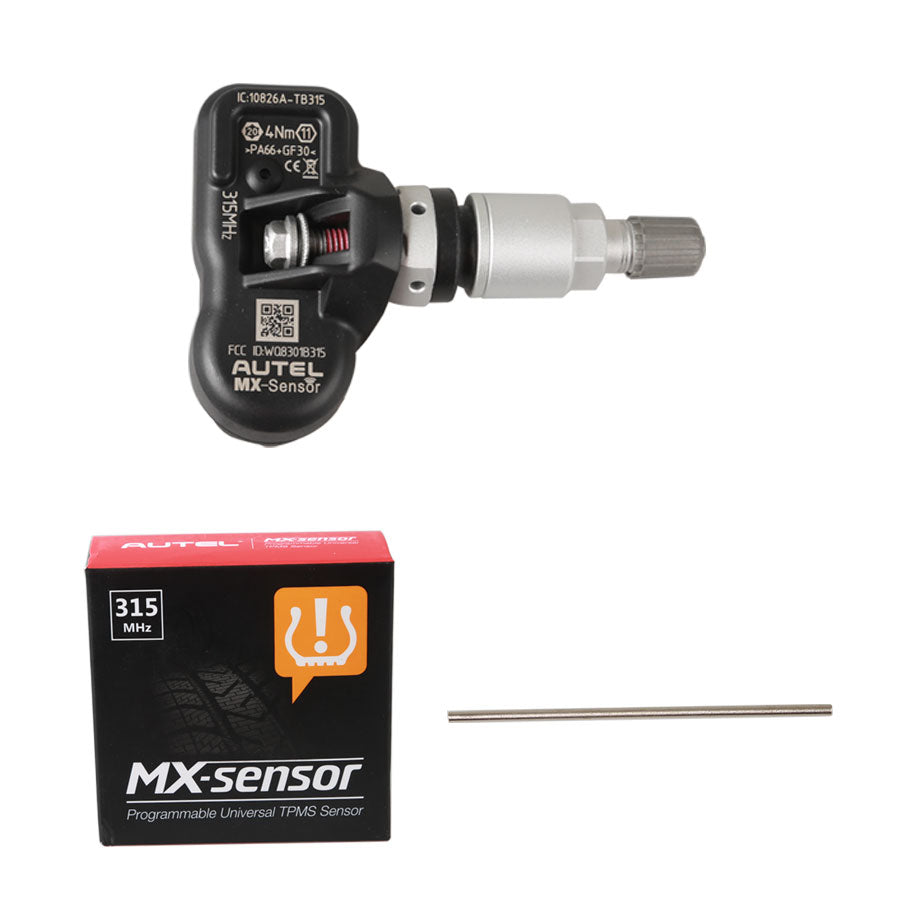

Package including:
1pc x Autel MX-Sensor 315MHz Universal Programmable TPMS Sensor
