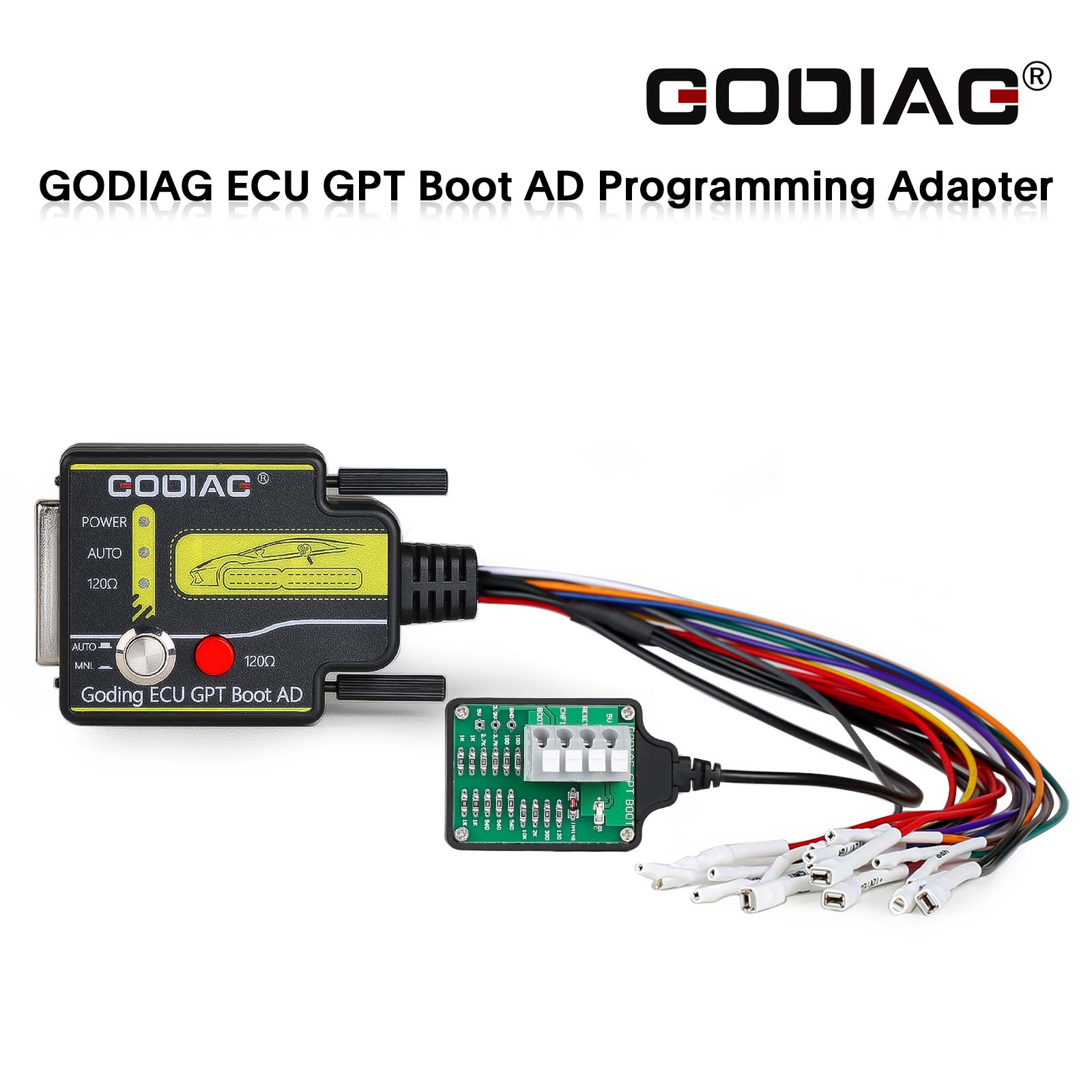

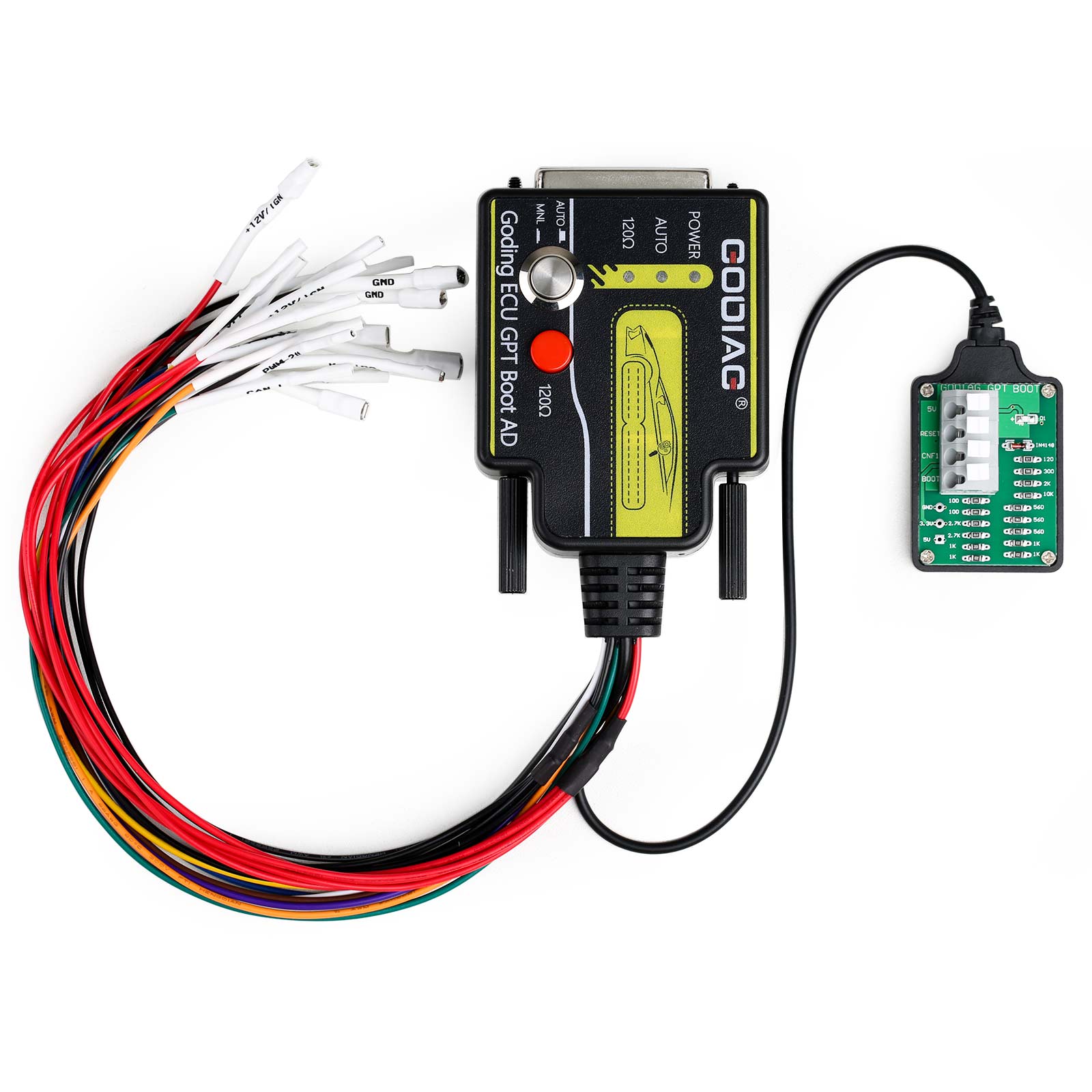

GODIAG ECU GPT Boot AD Programming Adapter Used with J2534 Devices
GODIAG ECU GPT Boot AD Programming Adapter Description:1. Support read/write data without disassembling ECU.
2. Support read and write data by boot.
3. Support read and write data by obd.
4. Equipped with BOOT resistor board connection line [anti-loss resistor design].
5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V ,3.3V , VPP,GND.
6. Support PCMFlash auto control of ignition power supply
7. Support manual ignition power control
8. Equipped with CANbus 120Ω resistor to switch freely.
9. ECU special connection terminal with large square port and 2 flaps connection terminal.
10. ECU interface connecting wire is labeled.
NOTE: This is only an adapter, need works together with other ECU or J2534 tools.
Diagnostic function supports standard OBD2 protocol equipment.
Supports ECU reading and writing data, and supports J2534 devices.
Only Scanmatik 2 PRO for PCMflash allows to form GPT1, GPT2 signals necessary to work with Module 71.
Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,
Teradyne GNA600 (VCM 1), Mazda VCM 2 supports OBD2 or BOOT 53 mode to read and write ECU data.

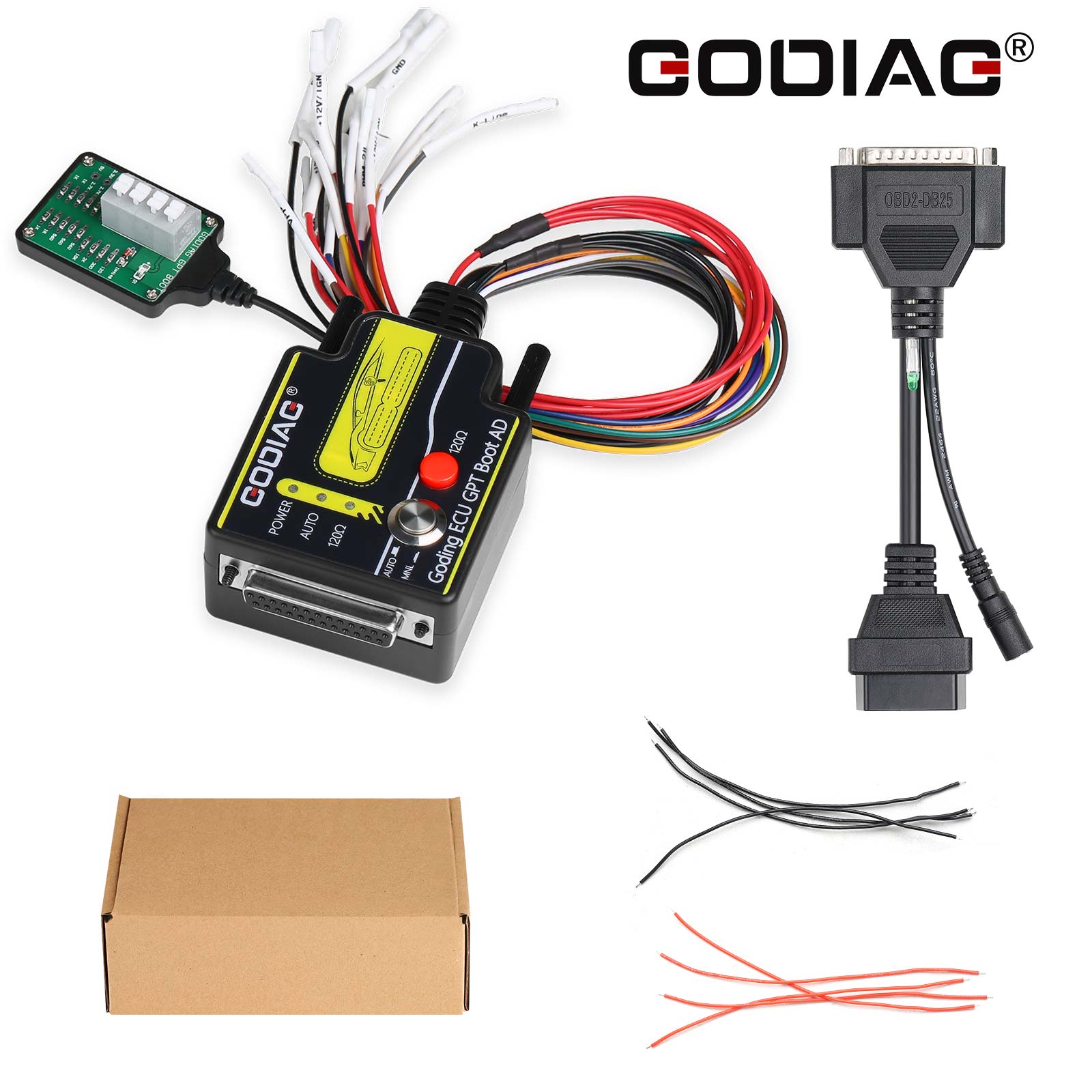

1pc x GODIAG ECU GPT Boot AD Programming Adapter
8pcs x Soft Silicone Wires
