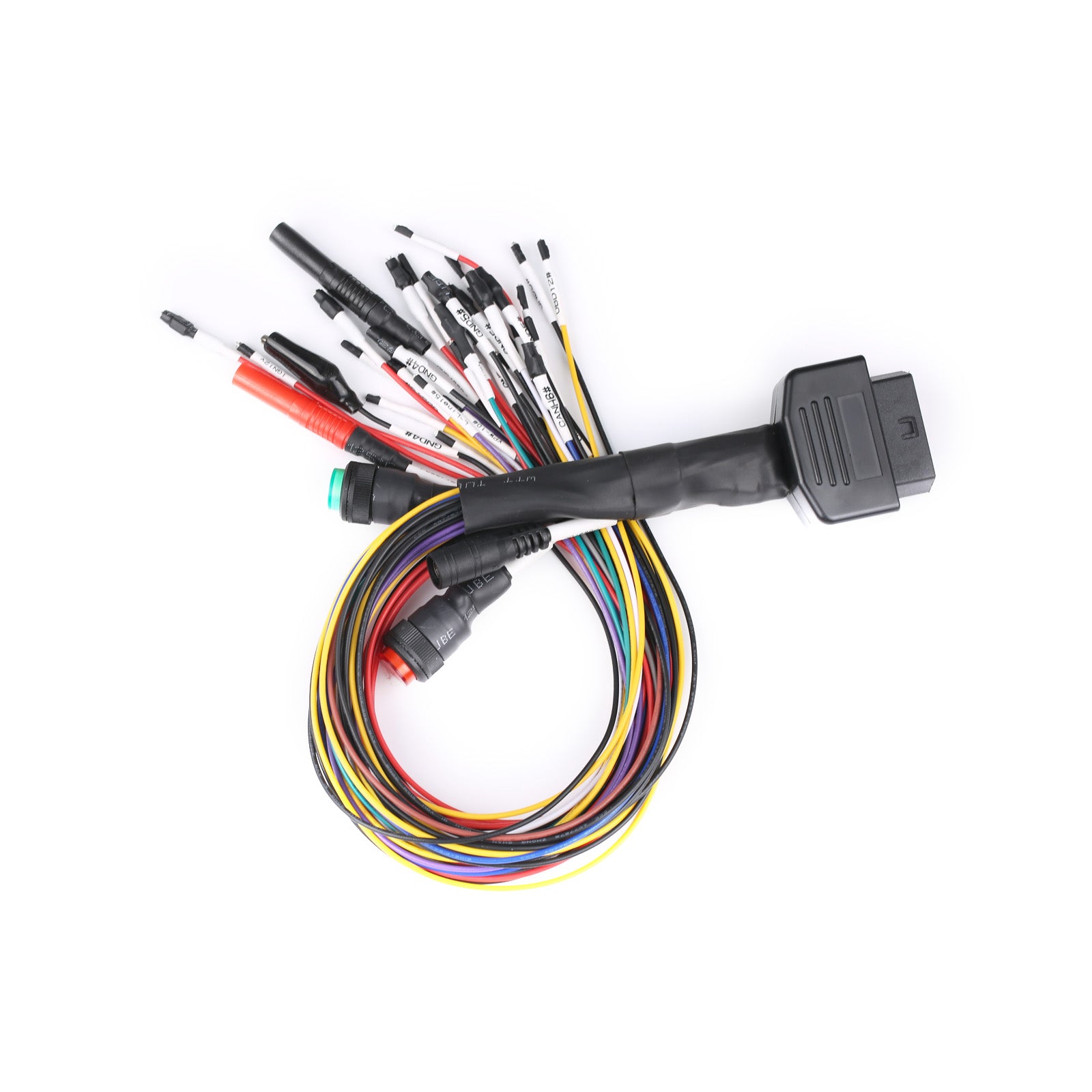

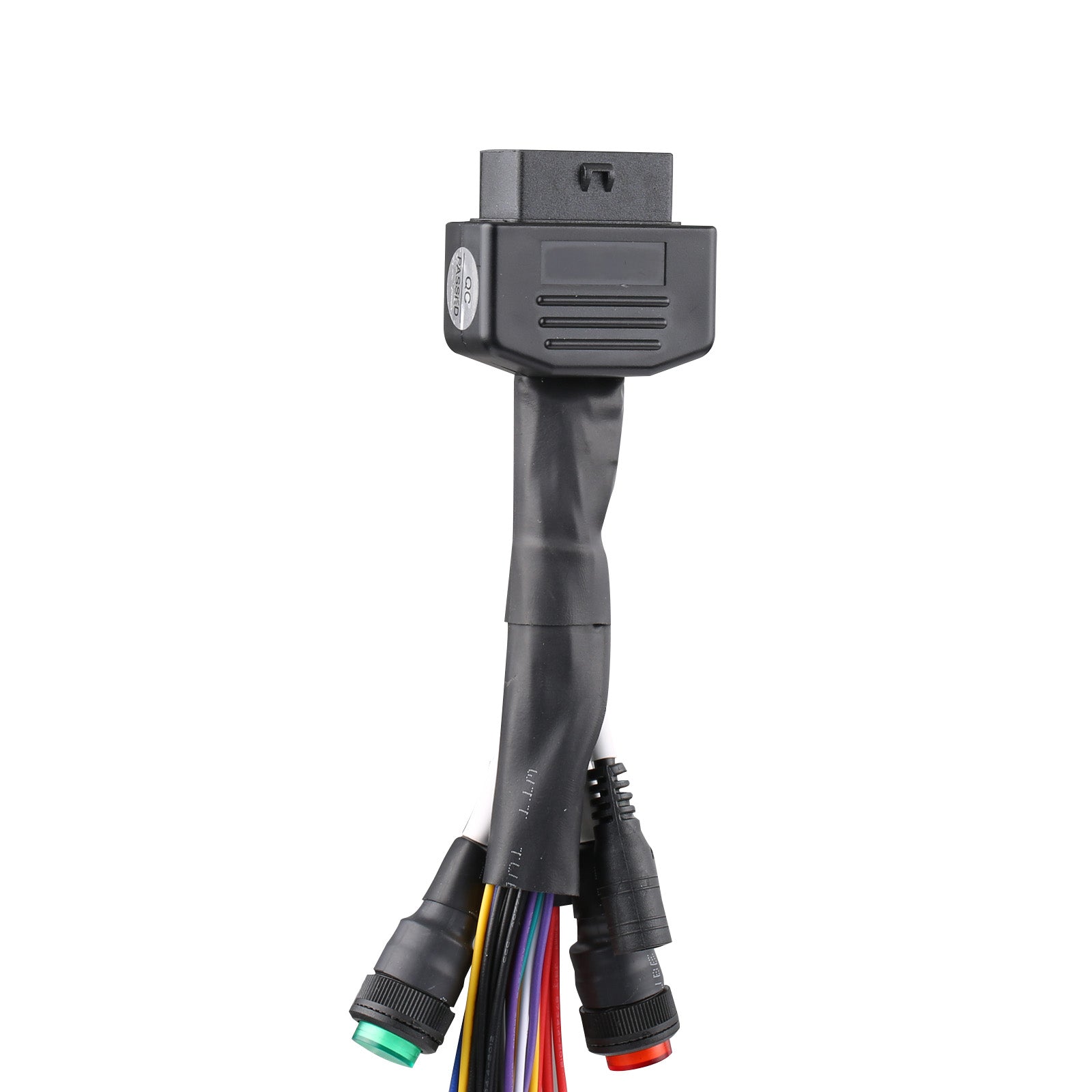

GODIAG Full Protocol OBD2 Jumper Cable Breakout Tricore Cable

Highlights for GODIAG Full Protocol OBD2 Jumper Cable:

    Breakout Tricore Cable
    Supports DC power supply
    Connect with Airbag module for airbag reset
    Equipped with CAN protocol communication resistance.
    With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, and KESS V2.
    Independent GND4, GND5 [meet the needs of special ECU programming].
    With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].  Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.
    With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].
    Supports safety protection banana head super programming dedicated connection port power supply.
    Supports standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, and 4 small GND.

Supported Models:

BMW 20, BENZ38, PSA- , DAIHATSU-4, FIAT-3, GAZ NISSAN-14 SUZUKI-3 AUDI 4, BENZ 1, CHRYSLER 6, DAEWOO 12, FORD6+1, GM12, HONDA3, KIA20, MAZDA17, MITSUBISHI 12,SSANGYONG 20, SUBARU 9,  TOYOTA 17, TOYOTA 22, BENZ 8, BENZ OD1 16

Connection Diagram of the Dedicated Programming Power Connector

Cable set contents:

7 pin Knorr, Wabco Trailer Adapter Cable X 1
12 pin MAN Adapter Cable X 1
37 pin MAN Adapter Cable X 1
IVECO-30P Adapter Cable X 1
SCANIA -16P Adapter Cable X 1
BENZ-14P Adapter Cable X 1
Renault-12P Adapter Cable X 1
VOLVO-8P Adapter Cable X 1
