Godiag GT100+ GT100 Pro OBDII Breakout Box ECU Bench Connector Adds Electronic Current Display and CANBUS Protocol

  • $109.00
    Unit price per
Shipping calculated at checkout.

GODIAG GT100+ is a latest testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding And after all the keys are lost, the instrument and the anti-theft system are forced to activate by short-circuiting.

Godiag GT100+ GT100 Pro OBDII Breakout Box Feature:

1. ECU connection + OBDII Protocol Detector + Electronic Current Display
2. Package come with an Optional dedicated adapter
3. Compatible with tools from LAUNCH, AUTEL, FOXWELL, XHORSE, VXDIAG, CGDI.....
Convert OBD1 diagnostic interface to the standard OBD2 diagnostic interface
4. Used with BMW-CAS4 Adapter test platform to detect whether the CAS4 key programming works perfectly or not

GT100+ Pro vs. GT100

GT100+ adds Electronic Current Display.
GT100+ Adds CANBUS Protocol Communication
Reset instrument/immobilizer when all keys lost

GODIAG GT100+ Function and Operation Guide

- By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100+'s LED will indicate whether the OBDII diagnostic interface has a good communication with the car.
- Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start/data loss/module locked.

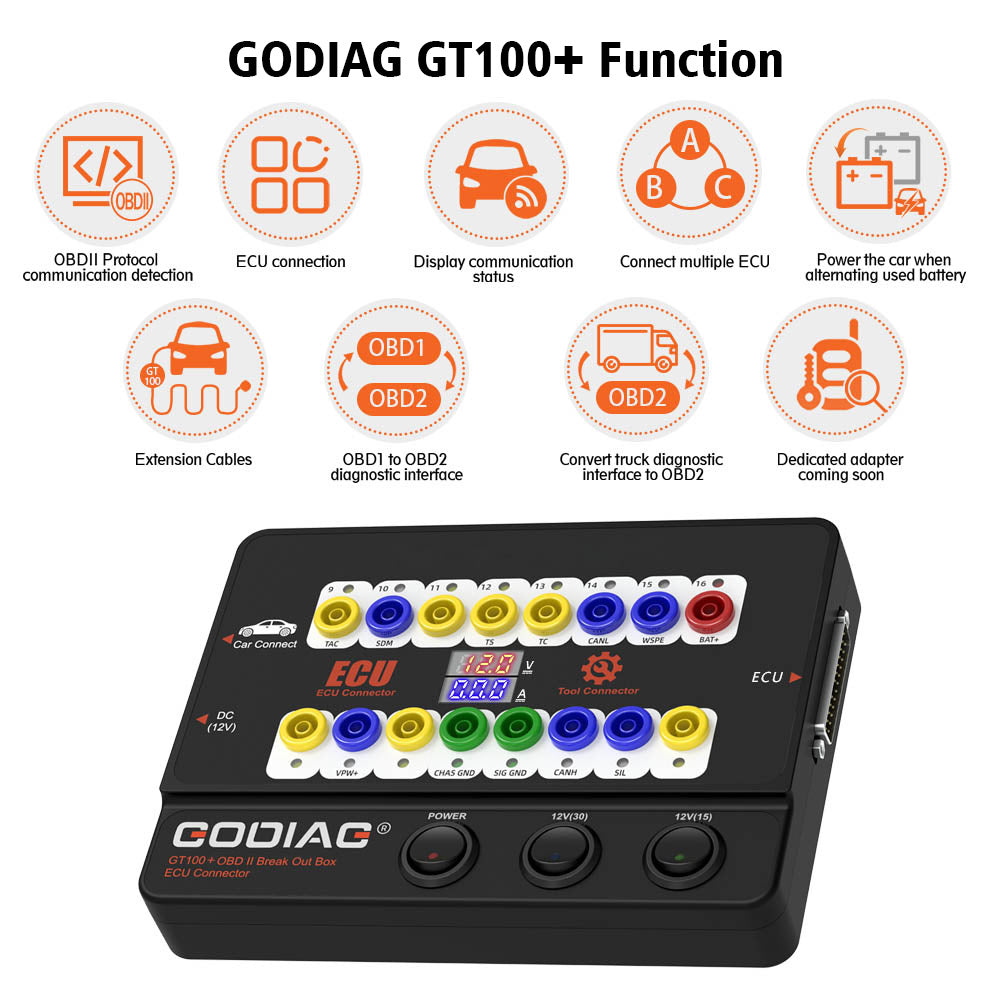

gt100 plus obdii breakout box

What i can do with GT100+ Breakout box?

1. Used to check whether the diagnostic / programming / coding tool can send communication signals.

2. Connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming

3. GT100+ program key for VW, Porsche, Mitsubishi etc with all keys lost - activate the instrument or immobilizer module.

A. To program VW 4th generation / 5th generation Lost all keys (for example: new A6L Touareg A4 Q5 A7), please use GT100+ to short-circuit banana connector PIN 16----PIN 1 to lit up the dashboard, aft that use the key programmer tool to connect with the female adapter of GT100+ for data collection. Some vehicle dashboards won't be lit up, but data can also be collected, for example: A6L Q7.
B. To replace the engine ECU of Toyota or to use some key programmer to program Toyota when all keys lost, it needs to short-circuit PIN13-PIN4
C. To program Mitsubishi key with all keys lost or to set OBDII when all remote key lost, please short-circuit PIN1-PIN4.
D. To program Porsche Cayenne key with all keys lost or with all remote key lost, please short circuit PIN3-PIN7.

4. Voltage and Current Value Display function

5. GT100+ Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100+ can only display K- Line PWM VPW+ KWP 2000 protocol. GT100 will display CANBUS K-Line Pwm Vpw+ KWP 2000 protocol communication.

6. Quickly communicate with a single ECU on bench by connecting with the ECU diagnostic / programming tool. [Which allow the engineers or technicians to complete the job on bench, also keep away the risk of data loss in other modules when directly testing on the vehicle.]

7. Multiple vehicle ECU module connecting. [It’s aimed at solving the problem of engineers and technicians who need to connect multiple ECU during programming a module, such as connecting to multiple ECU modules for key programming]

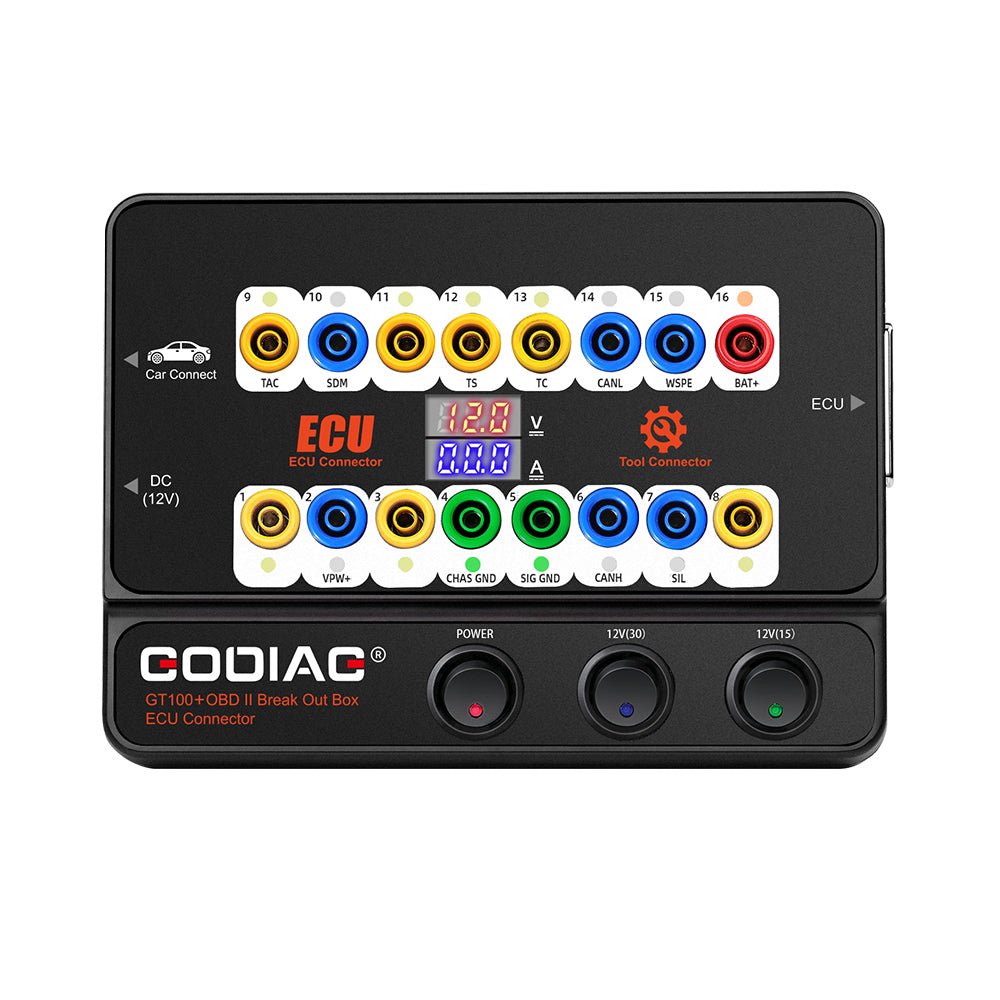

gt100 plus obd2 breakout box
