GODIAG GT100 PLUS, 4 IN 1 GPT ENET DOIP 24V-12V AUTO TOOLS OBD II Break Out Box, ECU Connector
GODIAG GT100 PLUS, 4 IN 1 GPT ENET DOIP 24V-12V AUTO TOOLS OBD II Break Out Box, ECU Connector

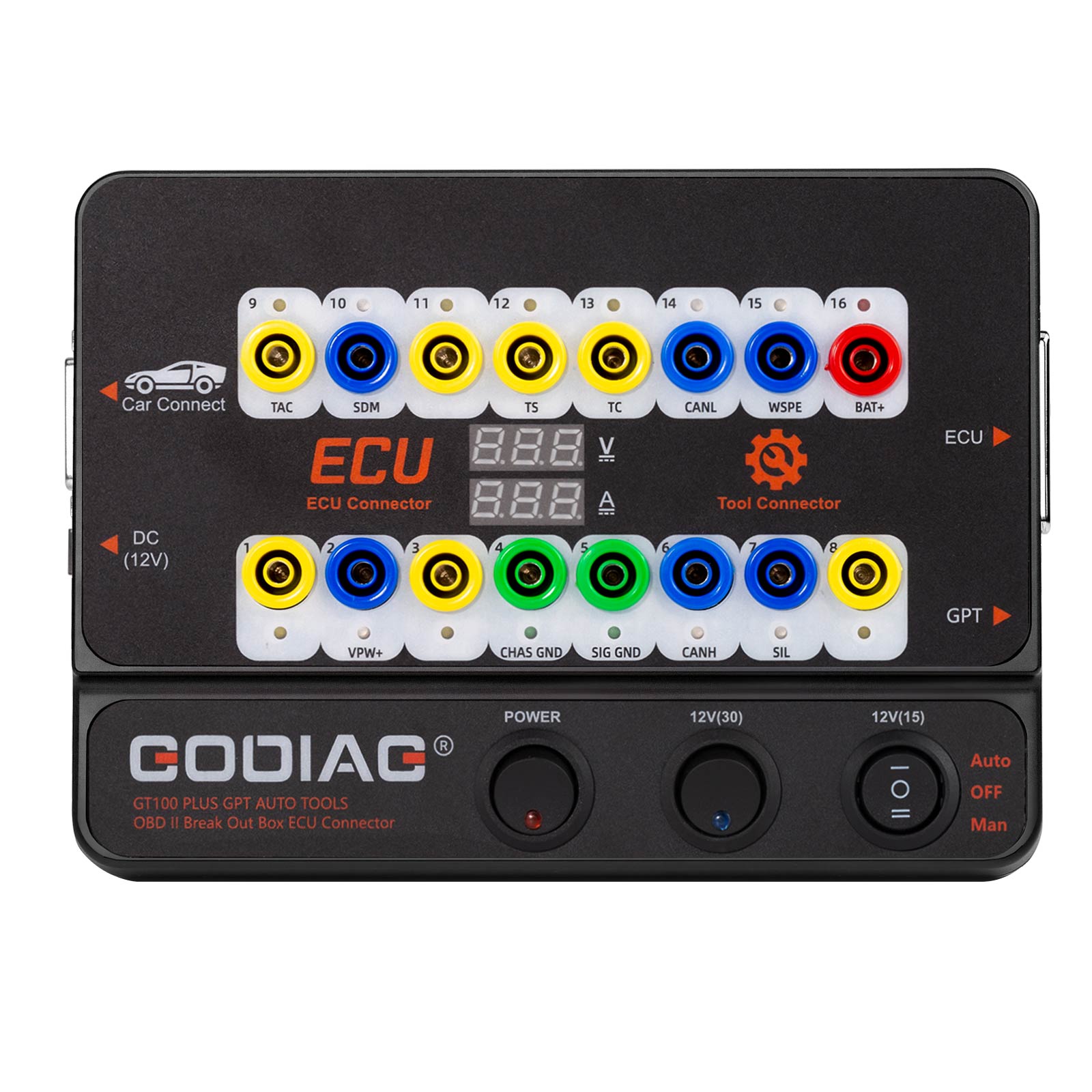

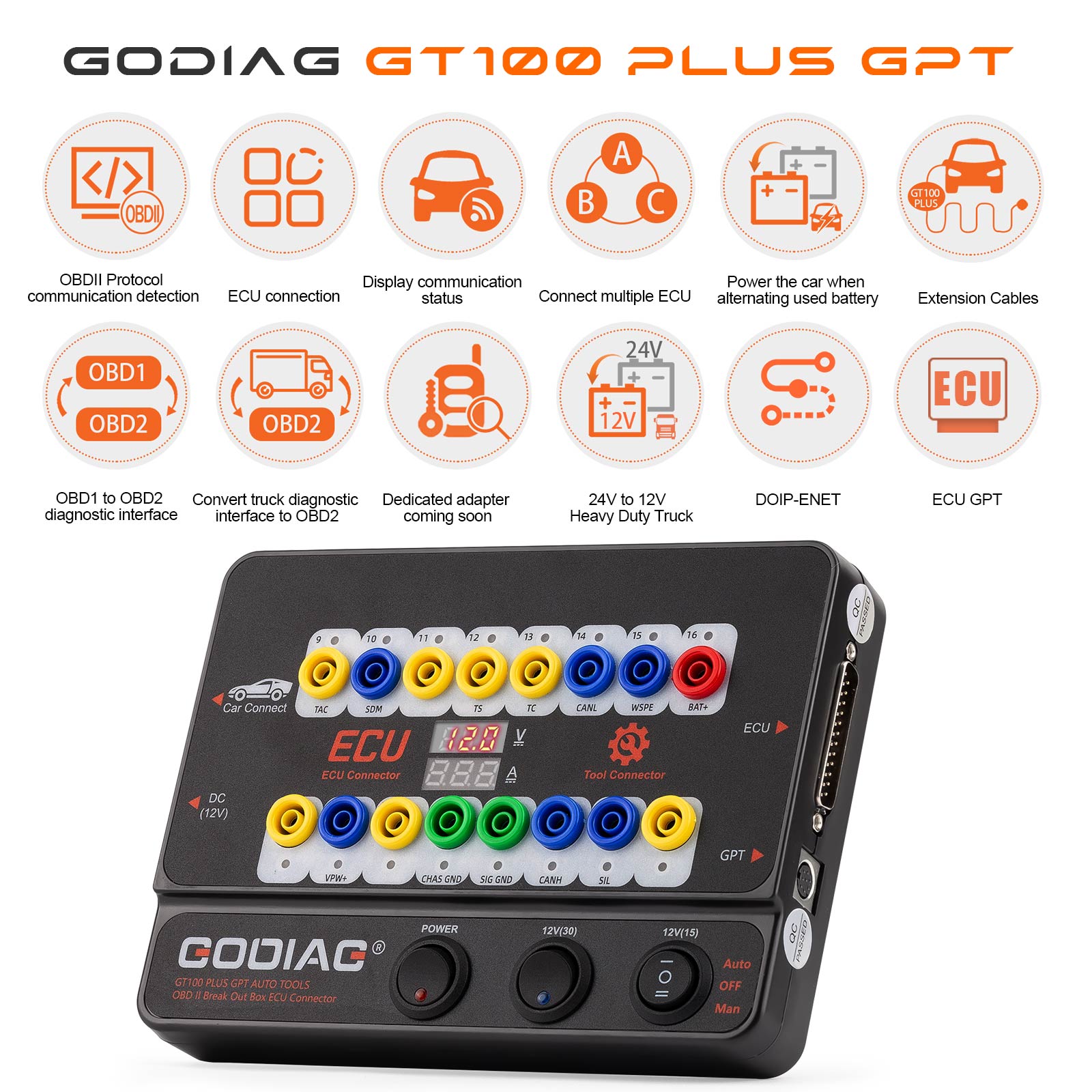

GODIAG GT100 PLUS GPT is a testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding. GT100 PLUS has a voltage and current display which is convenient for maintenance engineers to judge the current working status of ECU.
It can convert the car OBD2 interface into 16 pin for signal detection. It can be connected to the single modules or multiple modules of the vehicle. It can also be connected with any diagnostic tool to tell whether the car communication is good or not.
It supports the 24v to 12v voltage conversion, DOIP-ENET communication and GPT to read and write ECU data.
It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on.
The product uses CANH and CANL shielded twisted cables, which can resist electromagnetic interference and make communication more stable.
Product Functions:
1.Use GPT to read and write ECU with devices (such as PCMFLASH, KESSV2)
Support GPT to read and write data without disassembling the ECU.
Supports OBD2 BENCH [CAN bus & K-Line]
Supports GPT BOOT CNF1
2. Check OBDII diagnostic interface Communication Status and Display Voltage
By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100 PLUS GPT's LED will indicate whether the OBDII diagnostic interface has a good communication with the car. It monitors the voltage of vehicle's OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid data loss/ module locked/ the vehicle being unable to start. It supports OBD2 BENCH full protocols.
3. Support DOIP-ENET Diagnostics
Support DOIP-ENET communication
Support diagnostic programming and coding for BMW Benz, Volkswagen, Audi and other vehicles that support DOIP protocol. [no software is provided.]
Can be used for diagnostic programming and coding of Land Rover, VOLVO, and Geely vehicles that support DOIP communication. [no software is provided.]
4. 24V to 12V Voltage Conversion
Convert the 24v voltage of the diagnostic interface of heavy trucks, light trucks, pickups, etc. into 12v voltage that can be used by diagnostic equipment.
5) Connect with Airbag ECU
6.) Used to check whether the diagnostic / programming / coding tool can send communication signals.
7) ECU connection: single module connection
GODIAG GT100 PLUS GPT, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.

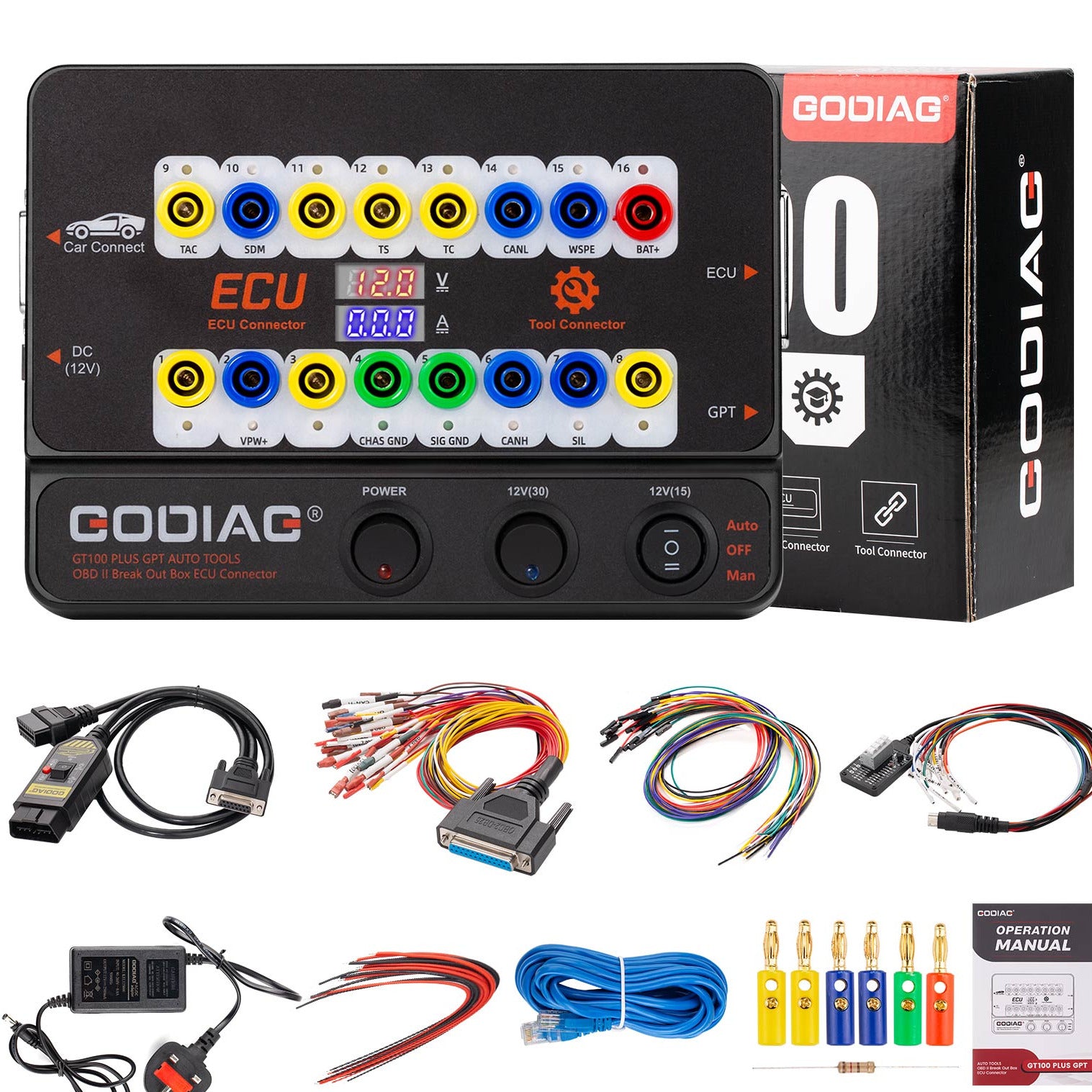

Package includes:
1pc x Host

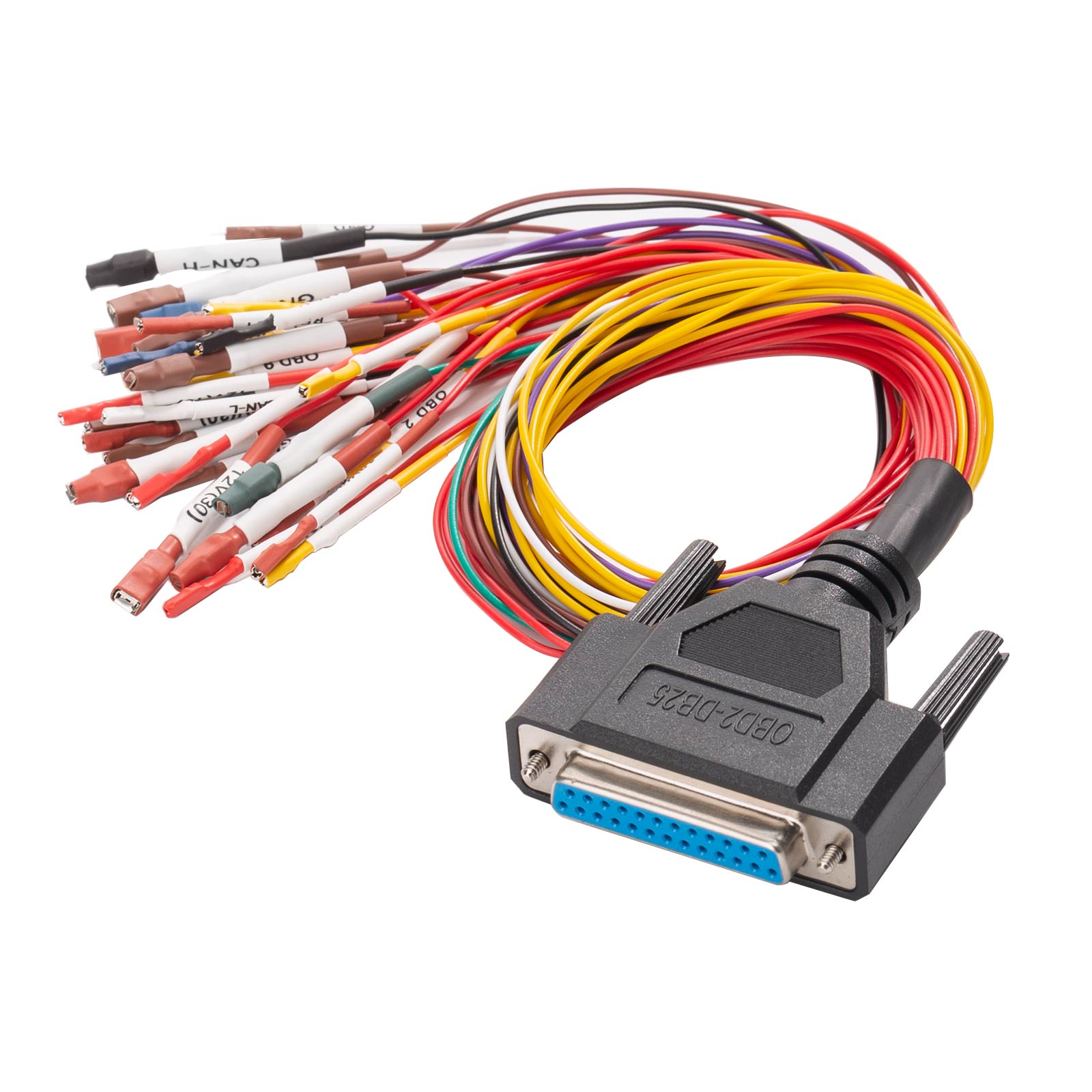

1pc x GPT connecting cable
1pc x Ethernet cable

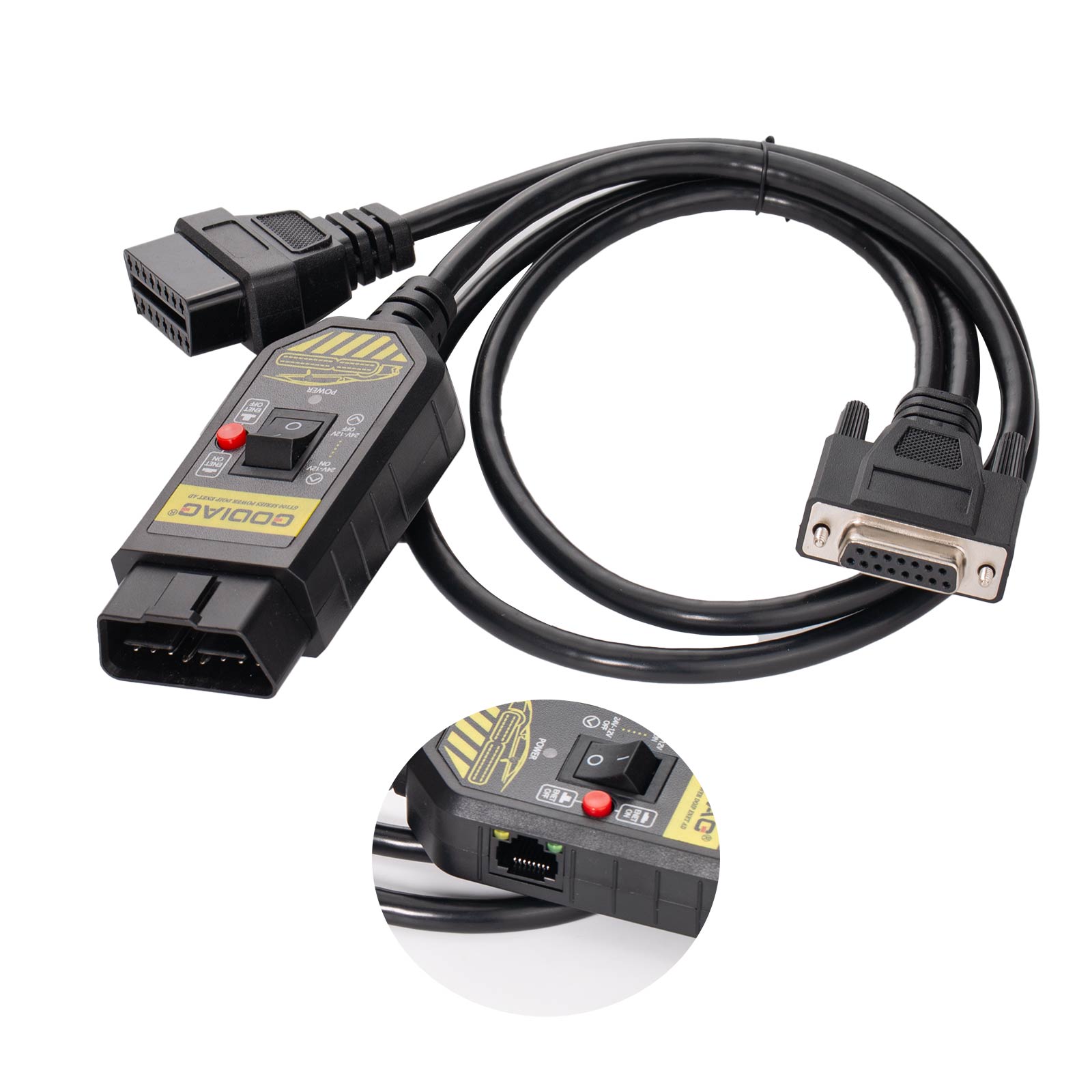

1pc x OBD 2-in-1 extension cable

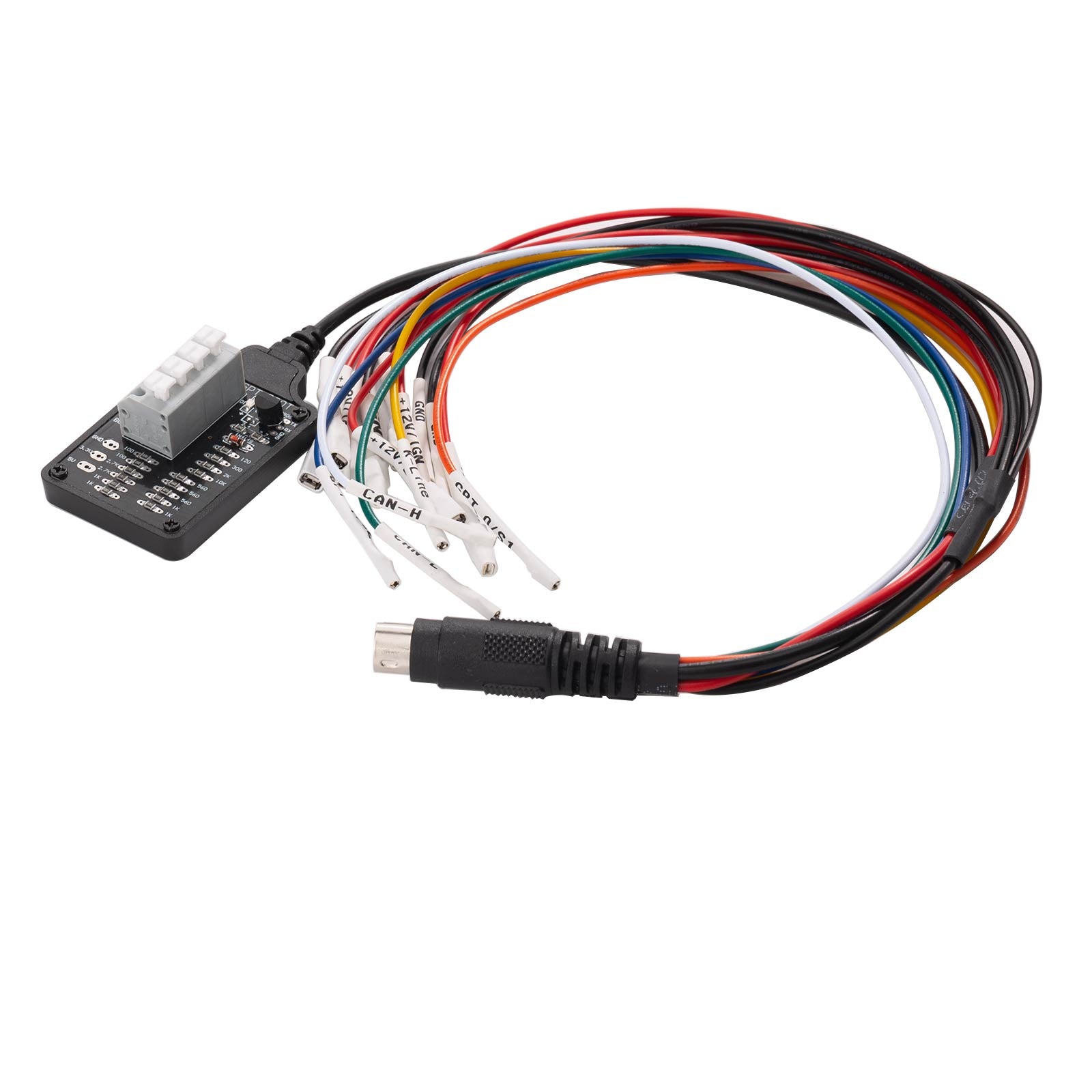

1pc x Colored jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x Banana plug

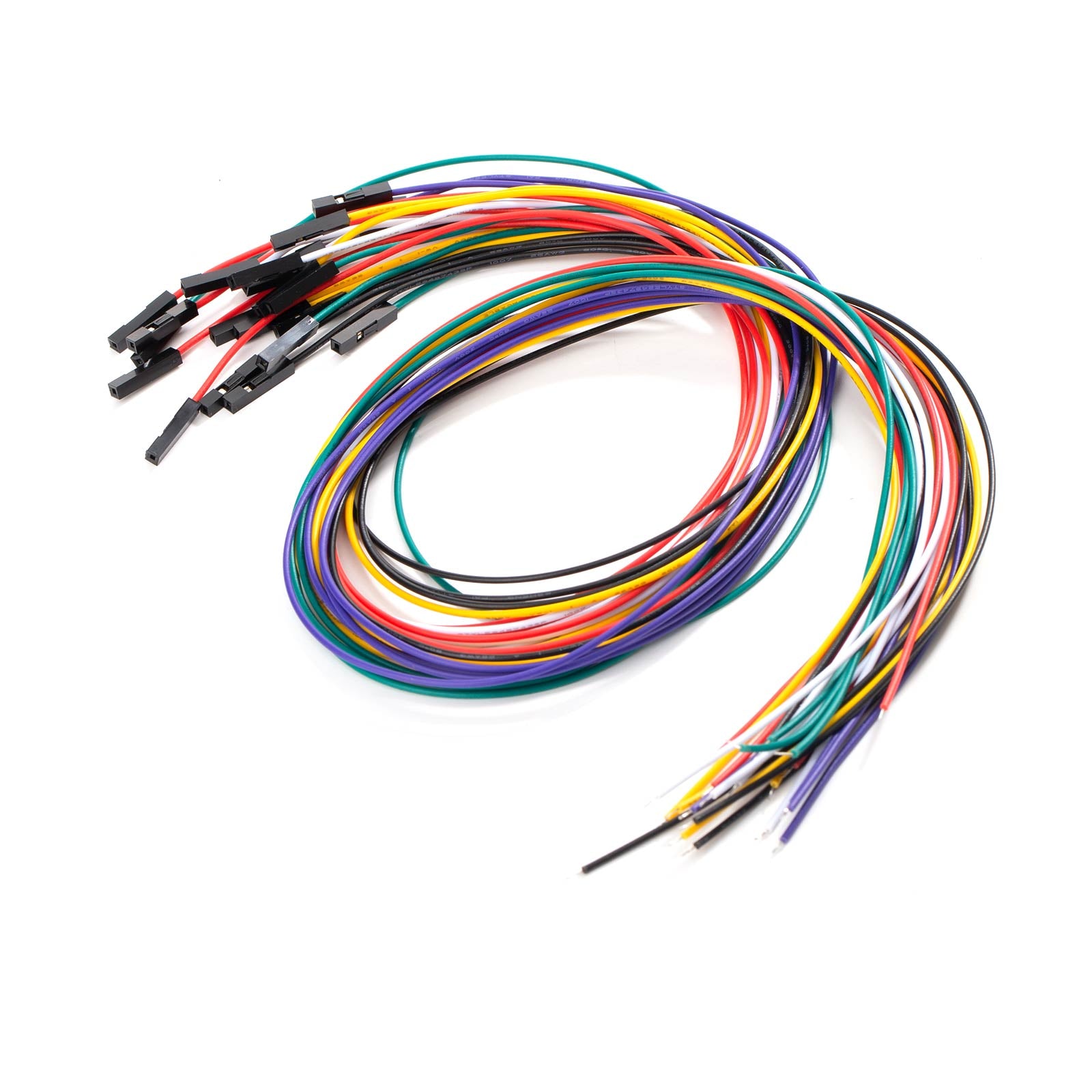

24pcs x Wire accessories, Dupont 2.54mm connector female pins
1pc x Manual
