Upgrade Version XHORSE Dolphin XP005 XP-005 Key Cutting Machine With M5 Clamp

In stock
No reviews
Usually ships within 24 hours
$1,578.00
Product details
  • Vendor XHORSE
  • SKU MC005L

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews

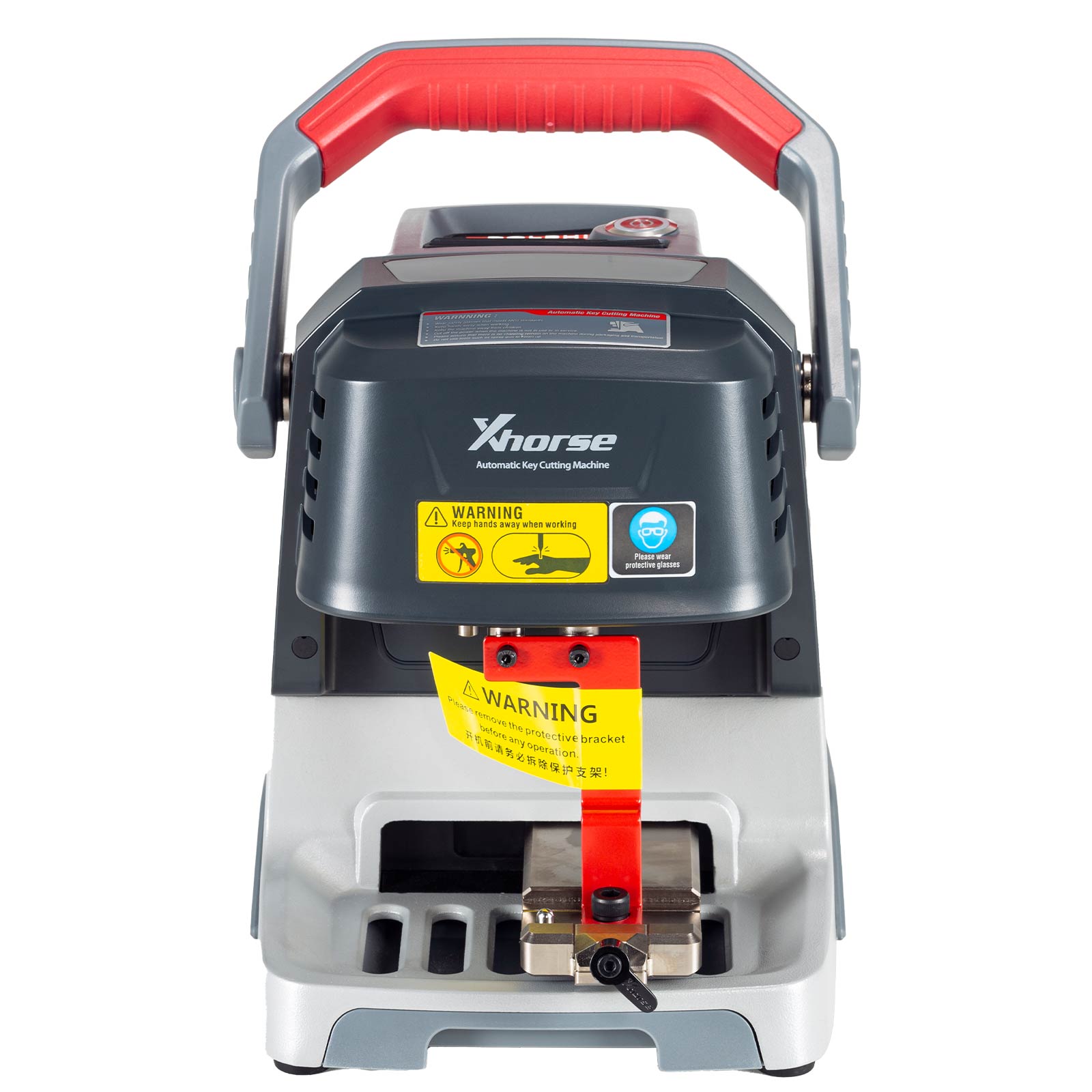

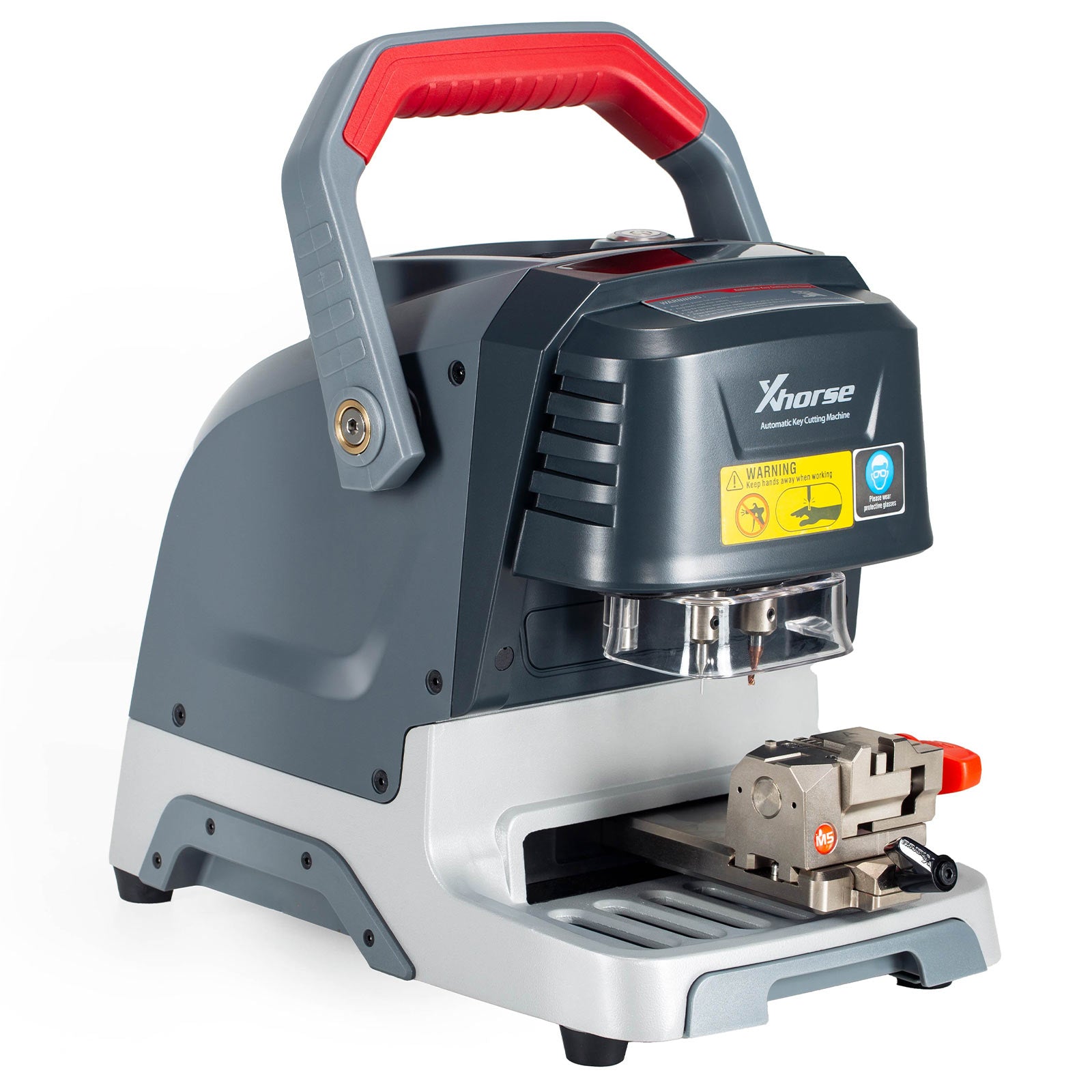

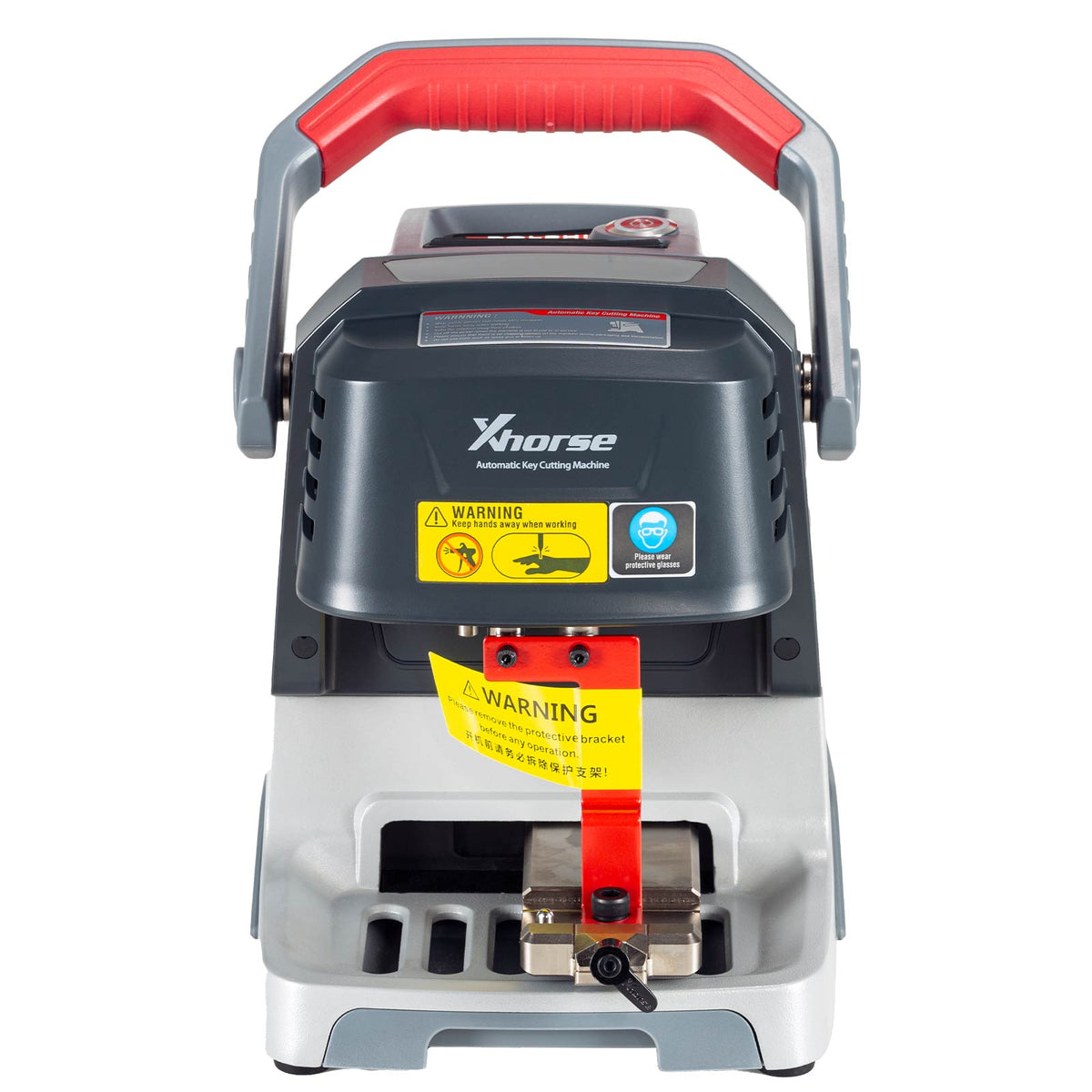

XHORSE Dolphin XP005 XP-005 Key Cutting Machine With M5 Clamp



Xhorse Dolphin XP005 Features:

With M5 Clamp
M5 clamp can perfectly replace the M1 and M2 clamps. Some keys are easier to hold with the M5 clamp than with the M1 or M2 clamp. For cars like the new Honda Civic, if you use the M1 and M2 clamps, you may not be able to cut at the root, but the M5 clamp can. Because the place where the M1 clamp fixes the embryo is blocked a little (The key embryo is too short, but the teeth are too long, and the embryo cannot be fully extended).

M5 clamp supports 4 track external, 2 track external, 4 track internal, Channel track. M5 clamp has two sides of A and B. Users can turn the clamp surface to cut according to cutting needs. There is no need to repeated install and uninstall to replace different clamps.
It can also be used with special fixtures to cut special Ford Citroen keys. It supports the connection of photo-taking, tooth-reading and optical imaging equipment. Non-conductor keys (plastic keys) can be cut.
Built-in Battery
The built-in lithium battery of the XP-005 machine can support rescue work for a long time without external power supply. The portable handle design and light body weight make it more convenient to carry.

Precision Production
All aluminum body structure, Manufactured by Germany-made DMG CNC machine

Intelligent Control
Provide powerful free App, support multi-language, support mobile phone, tablet computer and other intelligent terminal control, easy for operations.

Data Richness
Provide rich vehicle data, blank key data, the best tool of all key lost.

High Efficiency Cutting
Use American famous brushless motor and screw rod, high efficiency and stability, create high precision cutting quality.

Patented Clamps
Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 clamp is applicable to single sided house-key.
The XP-005 patented clamp design makes it convenient and easy to switch between different types of clamps. The built-in clamp of XP-005 supports common external milling and internal milling and duplication of vertical milling keys. It can also be used with special fixtures to cut special Ford Citroen keys. It supports the connection of photo-taking, tooth-reading and optical imaging equipment. Non-conductor keys (plastic keys) can be cut.

Free Upgrade
Provide free software upgrade service, software function and database.

Technical service
One year warranty, free technical support, online service to provide remote control support

Key Database
The built-in genuine key database is convenient for the tooth shape query when all keys are lost.

Bluetooth Connection
XP-005 can be connected to a mobile phone or tablet computer through Bluetooth for operation, and can also be used with key tool max and tablet computer.
Specification:
Series DOLPHIN Key Cutting Machine Series
Model XP-005
Working temperature -10~50℃
Working Humidity 10%~90%
Input voltage 12-24V
Battery capacity 64.75w.h
Cutting power 100W
Standby power 15W
Motor Rotation Speed 10000-13000RPM
Rated torque 0.15N.m
USB Port USB2.0

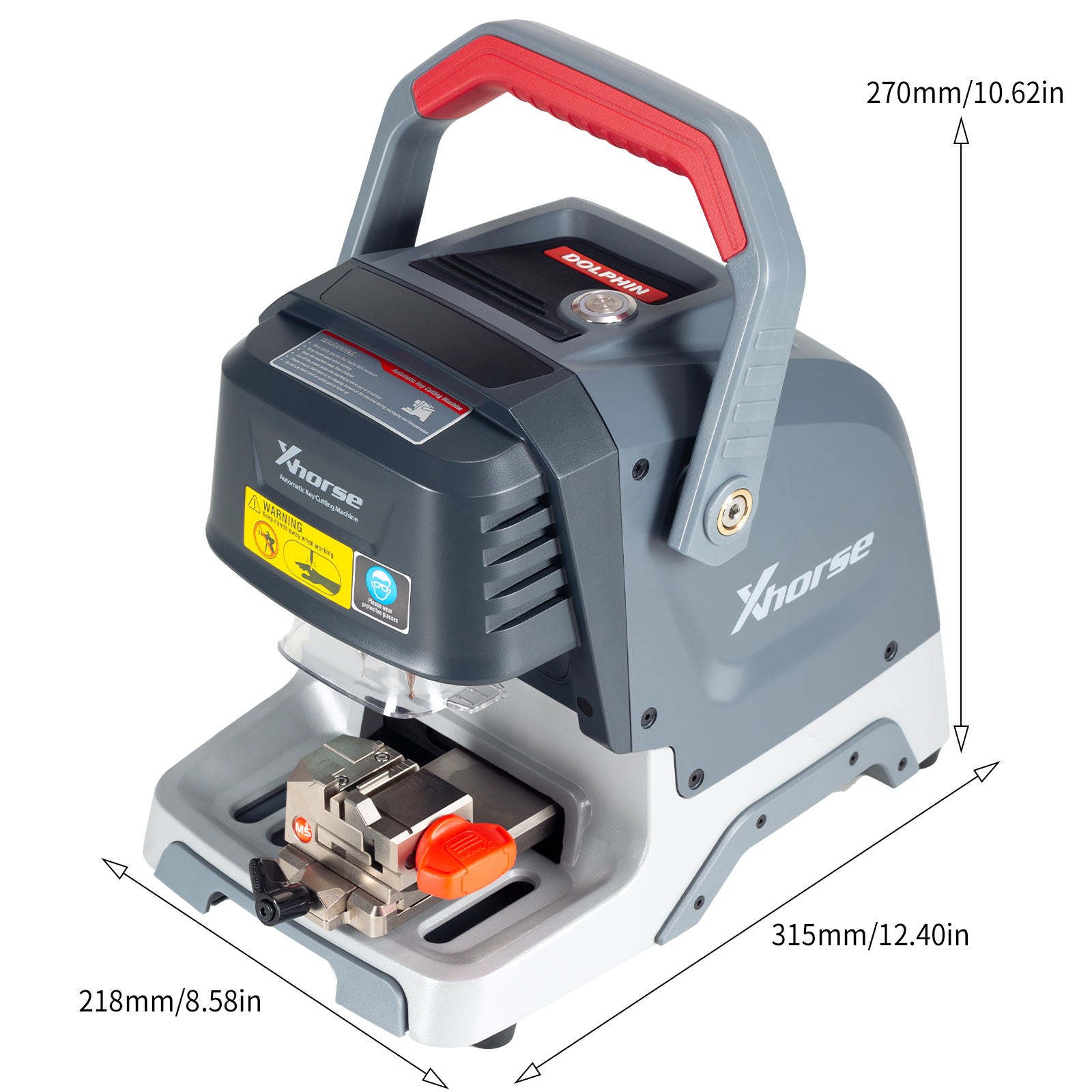

Machine Dimension 315*218*270mm

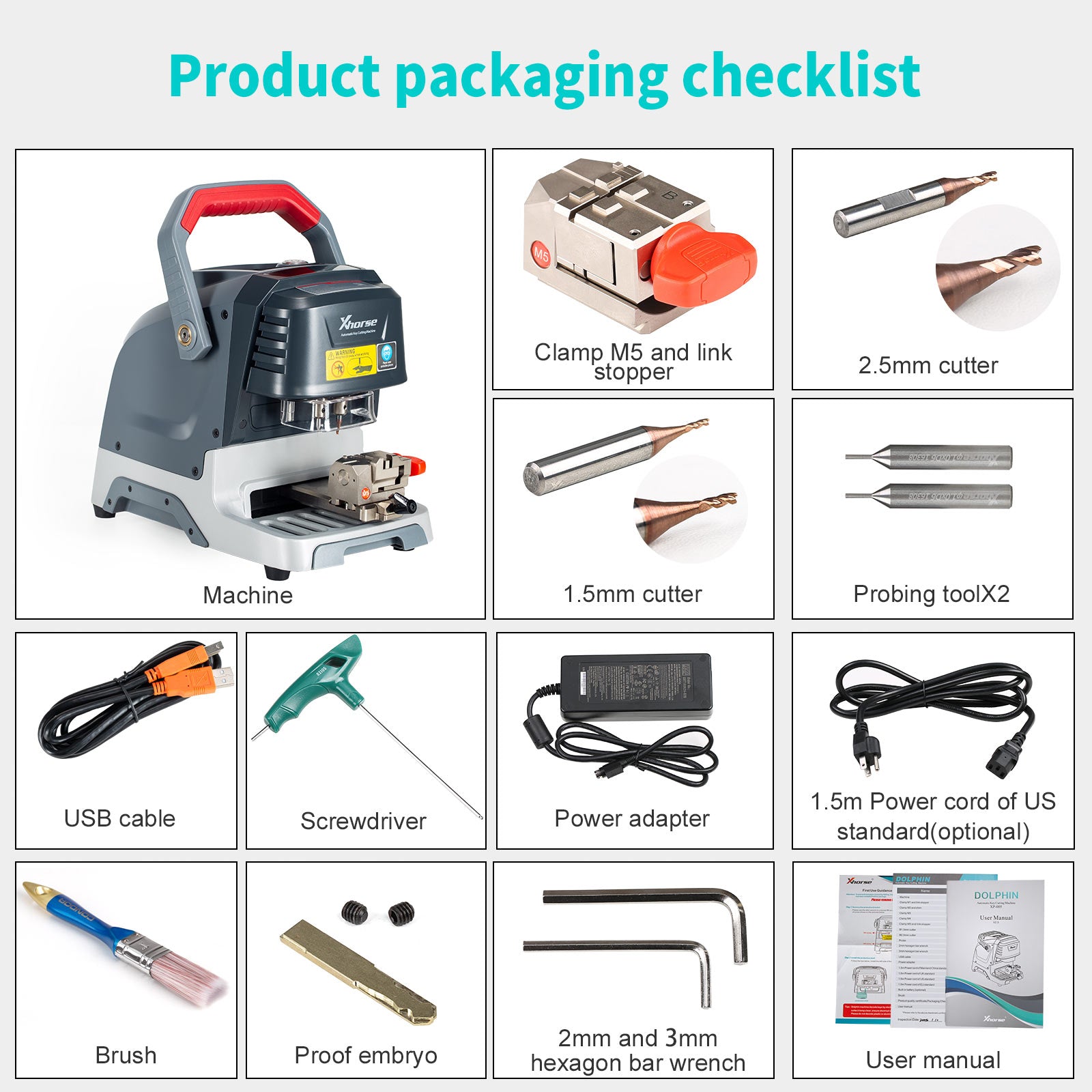

Package Includes:

1pc  x  Condor Dolphin Machine Body
1pc  x  M5 Clamp
1pc  x  1.5mm Cutter
1pc  x  2.5mm Cutter
2pc  x  1.0mm Probe
1pc  x  Power Supply Adapter
1pc  x  USB cable
1pc  x  Brush
1pc  x screwdriver
1pc  x 1.5m power cord of US standard(optional)
1pc  x proof embryo
1pc  x 2mm hexagon bar wrench
1pc  x 3mm hexagon bar wrench
1pc  x user manual
