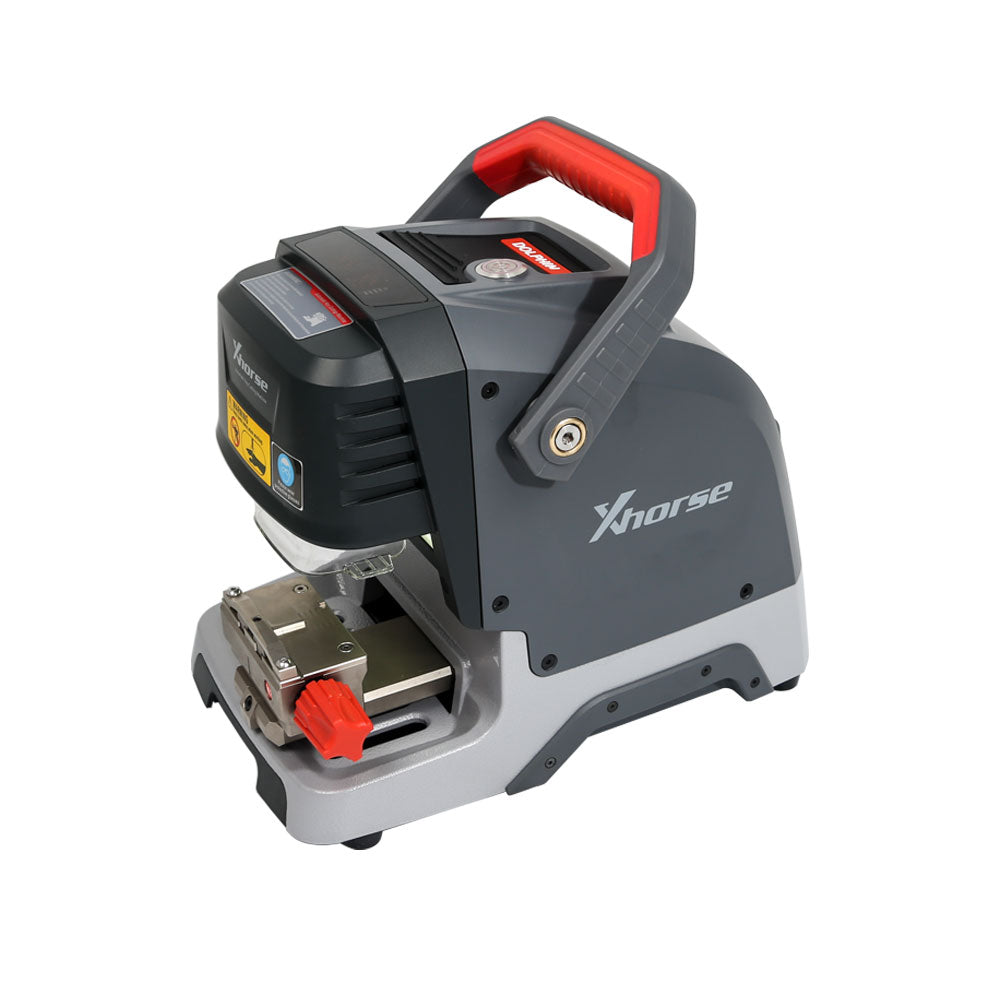

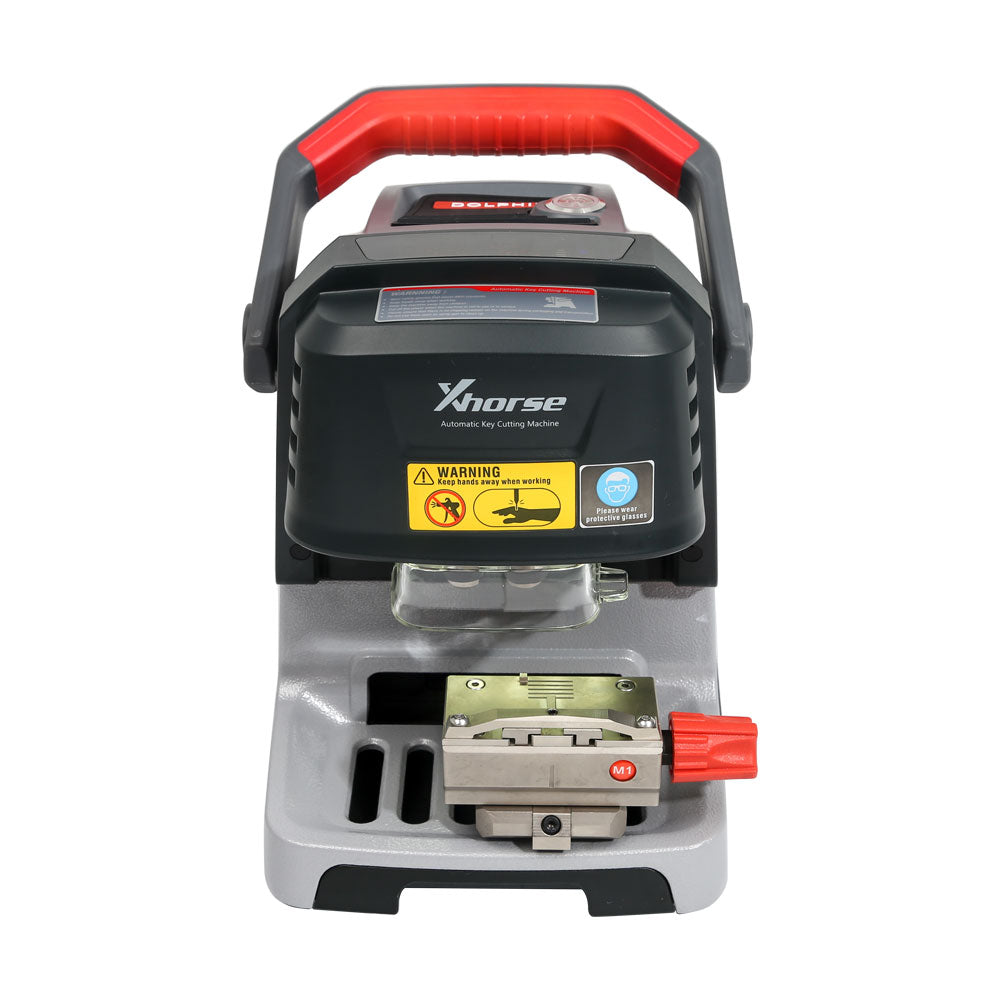

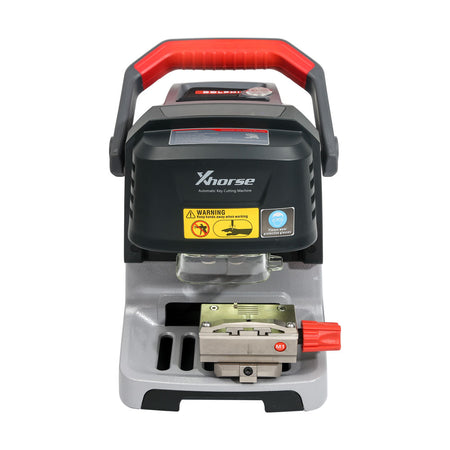

Xhorse Dolphin XP005 Key Cutting Machine with Built-in Battery

Xhorse Dolphin XP005 Key Cutting Machine with Built-in Battery

Top Reasons to Buy Xhorse Dolphi XP-005:

1. Built-in Bluetooth function, use smart cellphone to download APP, easy for smart operations. Provide powerful free App, support multi-language, support mobile phone, tablet computer and other intelligent terminal control, easy for operations.

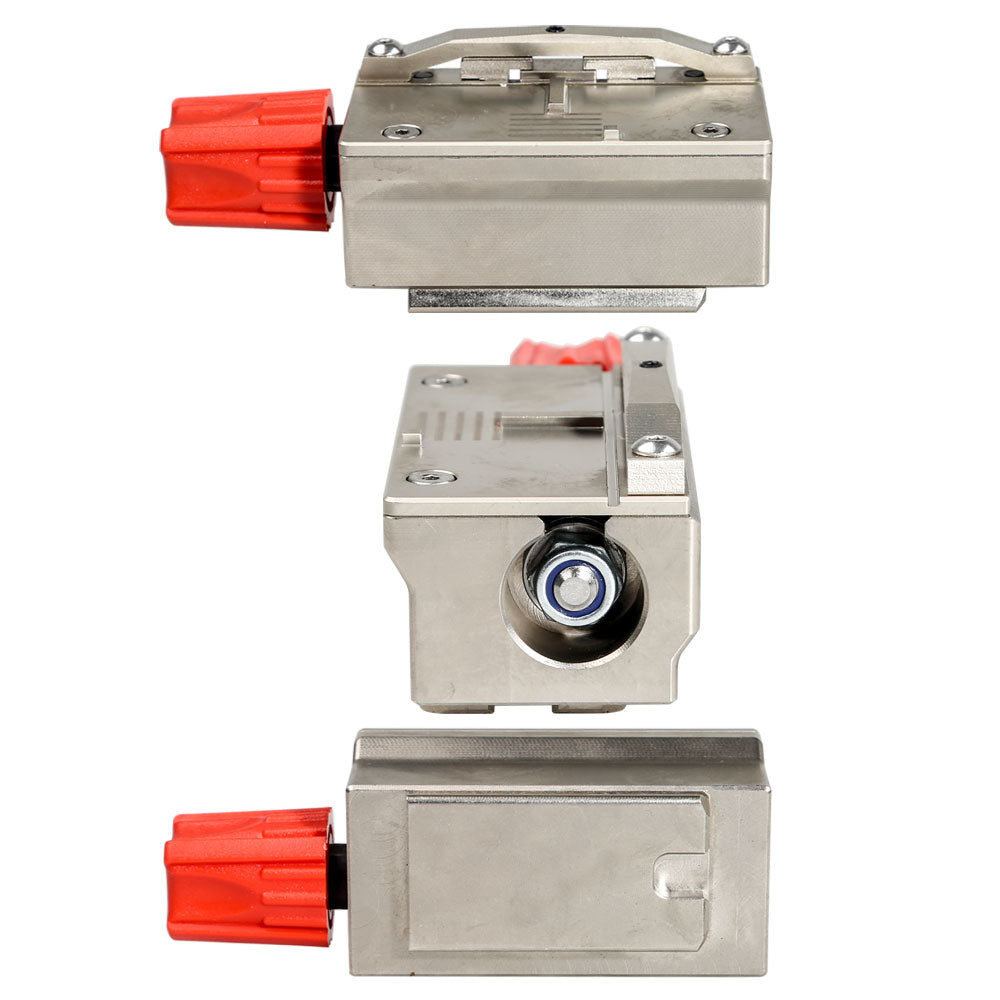

2. Standard equipped two clamps M1 and M2, supports Sided, Track, Dimple and Tibbe keys. Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 clamp is applicable to single sided house-key.

3. Provide rich vehicle data, blank key data, the best tool of all key lost.

4. All aluminum body structure, Manufactured by Germany-made DMG CNC machine;American imported 3-Axis Precision Ball Screw with clearance function, ensures high precision cutting.

5. Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions.

6. Free online update software, the latest update information will be released timely, 24hours support server online update, no need to back for update.

7. One-year warranty, free technical support, online service to provide remote control support, you can contact Xhorse engineer directly on app.

Dolphin Key Cutter Parameters:

Working temperature: -10~50℃

Input voltage:12-24V

Battery capacity: 64.75wh

Cutting power: 100W

Standby power: 15W

Motor Rotation Speed: 10000-13000RPM

Rated torque: 0.15 Nm

USB Port: USB2.0

Machine Dimension: 315*218*270mm

Package Dimension: 510*315*345mm

Net Weight: 15kg

Gross Weight: 18kg

Item	Condor Dolphin	Condor XC-MINI	Condor XC-MINI Plus
Pic
Screen	No touch screen,only display battery,bluetooth status.	Fixed touch screen.	Screen with adjustable angle, easier to adjust proper viewing angle
Spindle	Mechanical shaft +60W DC motor (with a foreign model)” “Electric spindle brushless 300W, built-in angular contact bearing	Electric spindle brushless 300,built-in angular contact bearing	Electric spindle brushless 300,built-in angular contact bearing
Transmission mechanism	“T-shaped screw + anti-backlash nut	Ball screw	3-Axis precision ball screw,more accurate and stable than T Screw transmission
guide	Roller guide	Cross-track	Cross-track
shell	Base aluminum alloy die-casting, the upper body is made of plastic shell and the body is made of integrated aluminum alloy die-casting.	Plastic outer casing body is formed by body alloying die casting.	All aluminus main body,plastic shell, larger space than condor mini.
Fixture	Standard fixture(M1,M2) (M3 M4 Optional Clamp)	Standard fixture(M1,M2) (M3 M4 Optional Clamp)	Standard fixture(M1,M2) (M3 M4 Optional Clamp)
Manipulation	No touch screen, no built-in database, operate on Phone APP	Quick start, with touch screen, built-in database	Quick start, with touch screen, built-in database
Offline operation	not support	stand by	support
Dedicated app	Support dedicated mobile phone APP	INSTACODE Software APP	INSTACODE Software APP
Built-in battery	built-in lithium battery one-time full charge	Optional Accessory: Power Supply Adapter with Built-in Battery	Optional Accessory:Power Supply Adapter with Built-in Battery
protecting mask		Comprehensive protection	Comprehensive protection
VVDI MB binding	Yes. After bind,VVDI MB is one token free everyday.	Yes. After bind,VVDI MB is one token free everyday.	Yes. After bind,VVDI MB is one token free everyday.
Cutting speed	1X SPEED	2X SPEED	2X SPEED
Update	Database update in APP	Online Update	Online Update, support offline file update.
weight	18Kg	21Kg	22.9Kg
Warranty	1 year	3 years	3 years
