Xhorse VVDI Prog VVDI-PROG ECU Programmer
Top Reasons to Buy VVDI PROG:
1. Built-in update software: VVDI Prog firmware update timely.
2. High-speed USB communication interface: VVDI PROG software automatically connect.
3. Smart operation mode: possible causes of error will be listed
4. Reserve ports: For future update.
5. Self-test function: Check if the machine works well or not.
6. Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed
VVDI PROG Latest Software VersionV4.9.5 Update:
* This version DON't need update firmware
* Fix RH86 bug
* Fix RH850 Series bugs
+ Add VVDI PROG USER MUNUAL 4.9.5 version in Doc folder
+ Add 24AA025, 24AA1025, 24AA1026 options in<1-EEPROM&FLASH-><MICROCHIP>
+ Add FOTON(MC9S12G128) option in <4-IMMOBILIZER-><BAICMOTOR>
+ Add HC05X32(1D69J) option in <4-IMMOBILIZER-><BENZ>
+ Add 300C-46 option in <4-IMMOBILIZER-><CHRYSLER>
+ Add S350-CONTROL-UNIT-PKE option in <4-IMMOBILIZER-><JMC>
+ Add MAXUS-V80 option in <5-DASHBOARD-><SAICMOTOR>
+ Add CAPTU-AIRBAG option in <7-AIRBAG-><RENAULT>
+ Add VOLVO-AIRBAG(2020) option in <7-AIRBAG-><VOLVO>
+ Add C205-CHAIR-MODULE option in <8-OTHERS-><BENZ>
+ Add FAW-BCM(MPC5603BxLQ) option in <8-OTHERS-><FAW>
+ Add BOYUE-PRO(2020)-PEPS-CONTROLLERoption in <8-OTHERS-><GEELY>
+ Add BOYUE-TIRE-PRESSURE-MODULE option in <8-OTHERS-><GEELY>
+ Add VV5-TAILGATE(2017) option in <8-OTHERS-><GREATWALL>
+ Add RFA-SECURED(SPC560B60L3) option in <8-OTHERS-><LANDROVER>
+ Add MAGOTAN-LEFT-FRONT-DOOR-MODULEoption in <8-OTHERS-><VOLKSWAGEN>
+ Add MAGOTAN-REVERSING-RADAR-MODULE option in <8-OTHERS-><VOLKSWAGEN>
VVDI Prog Cables and Function:
16Pin LockingSocket

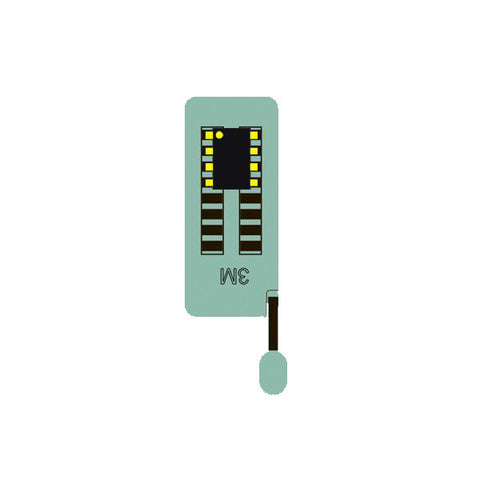

Read the common EEPROOM, note: please insert the chip by following the below picture.

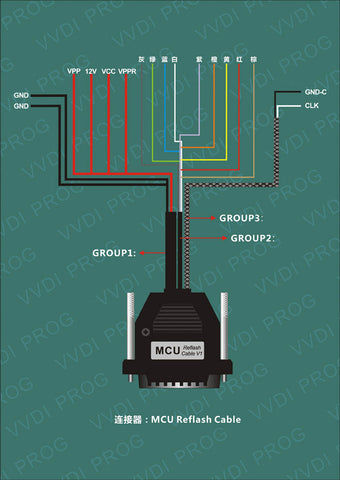

1.3.2 MCU Reflash Cable
Used to program MCU on board

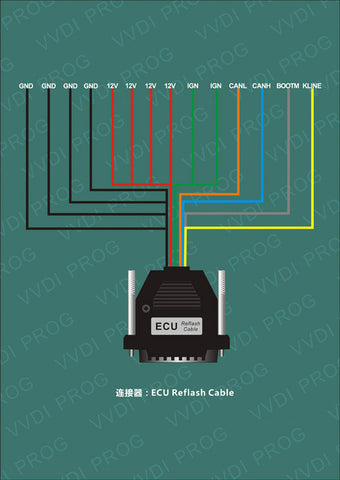

1.3.3 ECU Reflash Cable
Used to program ECU

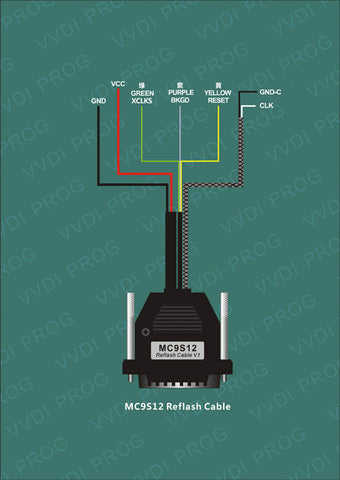

1.3.4 MC9S12 Reflash Cable
Used to program MC9S12 series chip
How to Update VVDI-Prog Software & Firmware?
Software Update
You can get from our "Download" page or in description,we always list out download link.

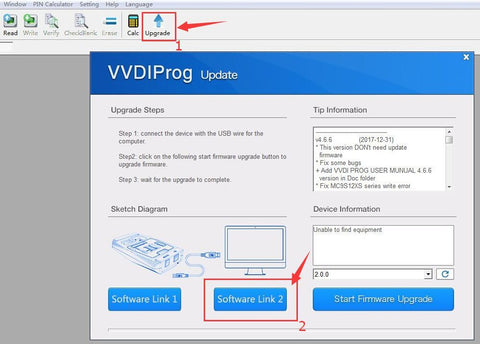

Get in VVDI prog software: Click the "Upgrade" button enter the upgrade interface, show as following(Please note: Firmware is necessary only when you are told to update. Press "Start Firmware Upgrade" button.)
EEPROM
| Manufactures | Types | Support | Remark |
| ATMEL | AT24CXX | R | |
| AT25XXX | R | ||
| AT93CX6 | R | ||
| BOSCH | B3XX | R | |
| B4XX | R | ||
| B5XX | R | ||
| B58XXX | R | ||
| CATALYST | CAT24CXX | R | |
| CAT24WXX | R | ||
| CAT93CX6[A] | R | ||
| EXEL | XL[S]24CXX | R | |
| XL[S]93CX6 | R | ||
| FAIRCHILD | FM24CXX | R | |
| NM24CXX | R | ||
| NM93CX6 | R | ||
| GRUNDIG | GRXX | R | |
| HOLTEK | HT93CX6 | R | |
| MICROCHIP | 24AAXX | R | |
| 24[L]CXX | R | ||
| 93[L]CX6 | R | ||
| 93AAX6 | R | ||
| MITSUBISHI | M6M800X1 | R | |
| SEIKO | S-24CXX | R | |
| S-93CX6 | R | ||
| ST | D80/D160 | R | Canerasethefirst32bytes |
| M35080 | R | Canerasethefirst32bytes | |
| NEC | M24CXX | R | |
| ST | ST24CXX | R | |
| ST24EXX | R | ||
| ST24WXX | R | ||
| ST25CXX | R | ||
| ST25EXX | R | ||
| ST95P0X | R |
Note: R means the type is supported, £ means the type will be supported in the future.
MCU
| Manufactures | Types | Support | Remark |
| MOTOROLA | MC9S12XEP | R | CanautomaticallydetermineD-FLASH/EEEspace |
| MC9S12XA | R | ||
| MC9S12XB | R | ||
| MC9S12XD | R | ||
| MC9S12XDT | R | ||
| MC9S12XDP | R | ||
| MC9S12XDQ | R | ||
| MC9S12DG | R | ||
| MC9S12DT | R | ||
| MC9S12P | R | ||
| MC9S12H | R | ||
| MC9S12HY | £ | ||
| MC9S12HA | £ | ||
| MC9S12HZ | £ | ||
| MC9S12XHZ | £ | ||
| MC9S12B | £ | ||
| MC9S12GC | £ | ||
| MC9S12XS | £ | ||
| MC9S12K | £ | ||
| MC9S12Q | £ | ||
| MC9S12C | £ | ||
| MC9S12P | £ | ||
| MC9HC(9)08 | £ | ||
| ATMEL | ATTINY | £ | |
| ATMEGEA | £ | ||
| NEC | uPD70F | £ | |
| ST | TMS370 | £ |
Note: R means the type is supported, £ means the type will be supported in the future.
ECU
| Manufactures | Types | Support | Remark |
| VAG | MED17.1-TC1796 | £ | |
| MED17.11-TC1796 | £ | ||
| VAGMEG17.5-TC1766 | £ | ||
| VAGMED17.5.1-TC1796 | £ | ||
| VAGMED17.5.2-TC1767 | £ | ||
| VAGMED17.5.5-TC1766 | £ | ||
| VAGMED17.5.20-TC1766 | £ | ||
| VAGEDC17CP14/CP20-TC1796 | £ | ||
| VAGEDC17CP04-TC1796 | £ | ||
| VAGEDC17C46-TC1767 | £ | ||
| VAGEDC17CP24-TC1796 | £ | ||
| VAGEDC17CP44-TC1797 | £ | ||
| VAGEDC17U01-TC1766 | £ | ||
| VAGEDC17U05-TC1796 | £ | ||
| VAG/PorscheSiemensContinentalSDI3- TC1796 |
£ | ||
| BMW | MEVD172(N55) | R | |
| MEVD172P(N20) | R | ||
| MEVD172G(N55) | R | ||
| MEVD172S(N55) | R | ||
| MEVD1724(N20) | R | ||
| MEVD1725(N13) | R | ||
| MEVD1726(N55) | R | ||
| MEVD1729(N20) | R | ||
| MEVD1728(N63/S63) | R |

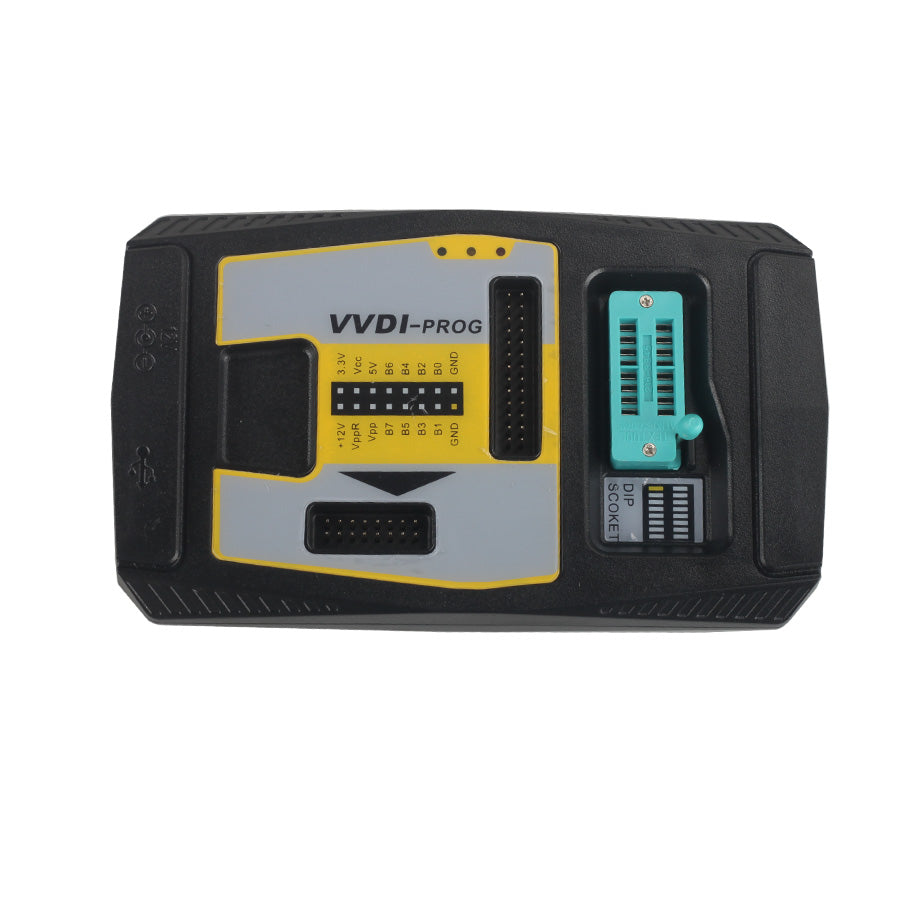

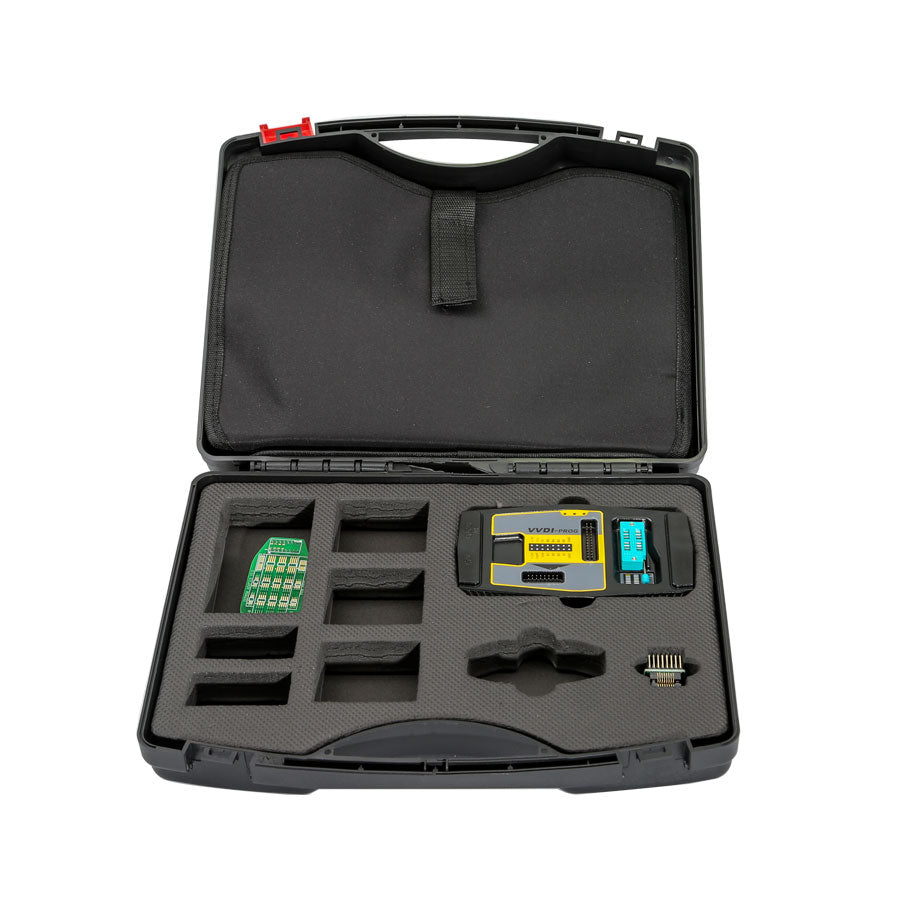

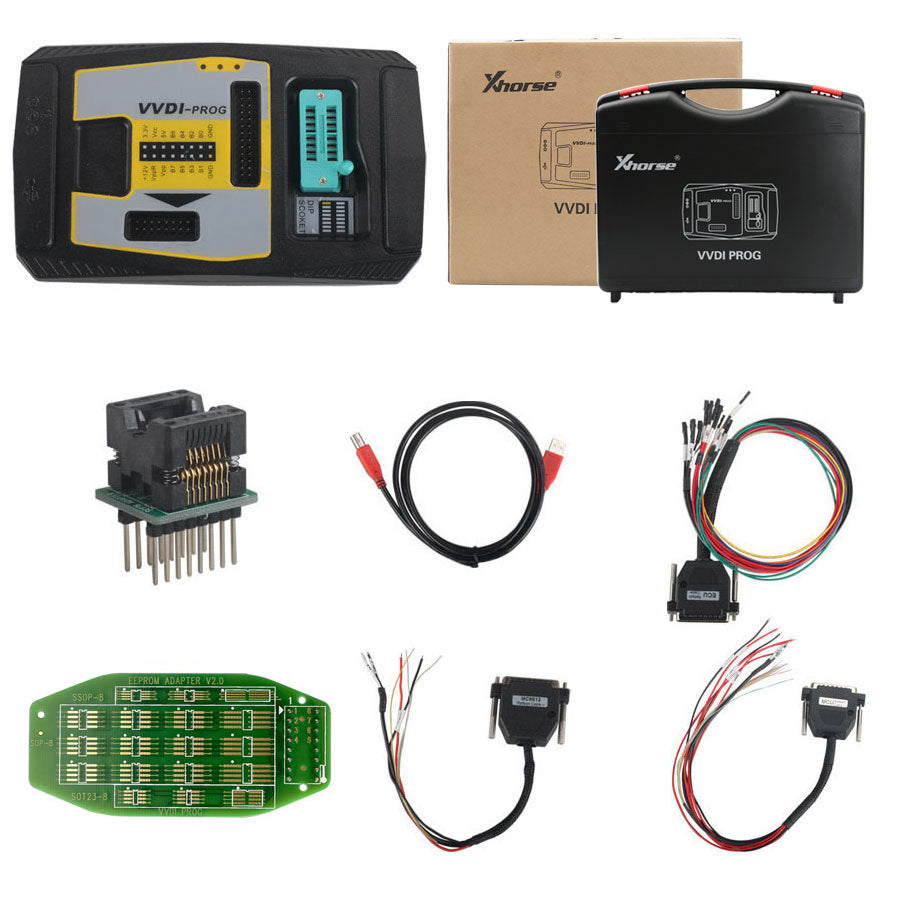

1pc x Programmer multiplexer
1pc x Square USB cable
1pc x SOP16 test socket
1pc x 16pin converter (Support SOP/SOT/SSOP)
1pc x MCU reflash cable
1pc x ECU reflash cable
1pc x MC9S12 reflash cable (Used to program MC9S12 series chip)
